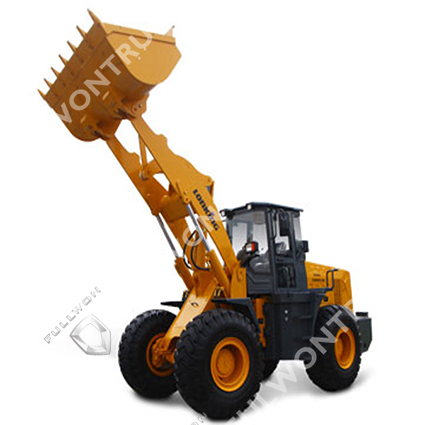

CDM853
Fullwon
| NO. | DESCRIPTION | UNIT | DIMENSIONS |
| A | Overall Height – Bucket Raised | mm | 5283 |
| B | Bucket Pin Height at Max. Lift | mm | 4136 |
| C | Dump Clearance at Max. Lift ( 45°) | mm | 3078 |
| D | Reach at Max. Lift and 45° Dump | mm | 1190 |
| E | Rack Back Angle at Carry | ° | 48.3 |
| F | Rack Back Angle at Ground | ° | 45 |
| G | Digging Depth | mm | 45 |
| H | Rack Back Angle at Max. Lift | ° | 52.6 |
| I | Dump Angle at Max. Lift | ° | 45 |
| J | Carry Height | mm | 400 |
| K | Ground Clearance | mm | 556 |
| L | Center Line of Front Axle to Hitch | mm | 1120 |
| M | Wheel Base | mm | 2930 |
| N | Overall Length | mm | 7760 |
| O | Departure Angle | ° | 28.6 |
| P | Height to Top of Cab | mm | 3380 |
| Q | Overall Width over Bucket | mm | 3000 |
| R | Min. Turning Radius over Bucket | mm | 6805 |
| S | Min. Turning Radius over Tires | mm | 6182(Front Tire) |
| 5957(Rear Tire) | |||
| T | Steering Angle – Left/Right | ° | 35 |
| U | Width at Tread Center | mm | 2240 |
| V | Overall Width over Tires | mm | 2835 |
| OVERALL DATA | |
| Bucket Capacity | 2.7m³ |
| Rated Payload | 5000kg |
| Operating Weight | 15800±300kg |
| Traction Force | 155±3kN |
| Breakout Force | 155±3kN |
| L×W×H | 7760×3000×3380mm |
| ENGINE&ELECTRICAL SYSTEM | |
| Maker/Model | WEICHAI/WD10G220E21 |
| Emission Standard | EPA (TierⅡ)/NationalⅡ |
| Engine Type | 4 Stroke，Turbocharged，Water-cooled，Direct Injection，Diesel Engine |
| Rated Power | 162kW(220hp)/2200rpm |
| Maximum Torque | 860N·m/1400-1600rpm |
| Bore x Stroke (mm) | 126×130 |
| No. of Cylinders/Displacement | 6/9.726L |
| Compression Ratio | 17 |
| Air Cleaner | Three Stage Air Cleaner with Cyclone Pre-cleaner |
| Alternator | 55Amp |
| Battery | 2-24V/120Ah |
| Starting Motor | 24V/7.5kW |
| Heating Capacity (W) | 5000W |
| Cooling Capacity (W) | 4700W |
| DRIVE TRAIN | |||||
| Transmission Type | Planetary Powershift Transmission | ||||
| Shift Type | Mechanical Powershift Control | ||||
| Pressure of Transmission | 1.2-1.5MPa | ||||
| Torque Converter Type | Single-stage，Duo-turbine，4-element | ||||
| Torque Ratio | 4 | ||||
| Axles | Rigid Front Axle&Oscillating Rear Axle | ||||
| Rear Axle Oscillation (°) | ±10° | ||||
| Differential | Conventional | ||||
| Main Reducer | Spiral Bevel，1-stage Reduction | ||||
| Final Reducer | Planetary Reduction | ||||
| Tire | 23.5-25 L-3 16PR TT | ||||
| Travel Speeds | km/h | 1st | 2nd | 3rd | 4th |
| Forward | 11.5 | 36 | |||
| Reverse | 16 | ||||
| BRAKE SYSTEM | |
| Service Brake | Single Circuit Caliper，Dry Brake |
| Setting Pressure | 0.70-0.78MPa |
| Parking Brake | Flexible Shaft Controlled Caliper Brake |
| Emergency Brake | Flexible Shaft Controlled Caliper Brake |
| STEERING SYSTEM | ||
| Type | Hydraulic Load Sensing System | |
| Pump | Gear Pump，152L/min·2200rpm | |
| System Pressure | 15MPa | |
| Cylinder | Type | Double Acting |
| Bore x Stroke | 2-90×324mm | |
| Steering Angle | ±35° | |
| HYDRAULIC SYSTEM | ||||||
| Type | Single-lever(Joystick) Control | |||||
| Pump | Gear Pump，190L/min·2200rpm | |||||
| Control Valve | 2 Spool (Bucket&Boom) | |||||
| System Pressure | 16MPa | |||||
| Cylinder | Lift Cylinder | 2-160×836mm | ||||
| No.-Bore x stroke | Tilt Cylinder | 1-180×559mm | ||||
| Joystick Control Pressure | 2.5MPa | |||||
| Cycle Time | Raise | Dump | Lower | Total | ||
| (Sec) | 6 | 1.2 | 4.3 | 11.5 | ||
| SERVICE REFILL CAPACITY | |
| Fuel Tank (L) | 280L |
| Hydraulic Tank (L) | 245/250(3rd Spool for Auxiliary Function)L |
| Crankshaft (L) | 20L |
| Transmission (L) | 46L |
| Front Axle/Rear Axle (L) | 28L/28L |
