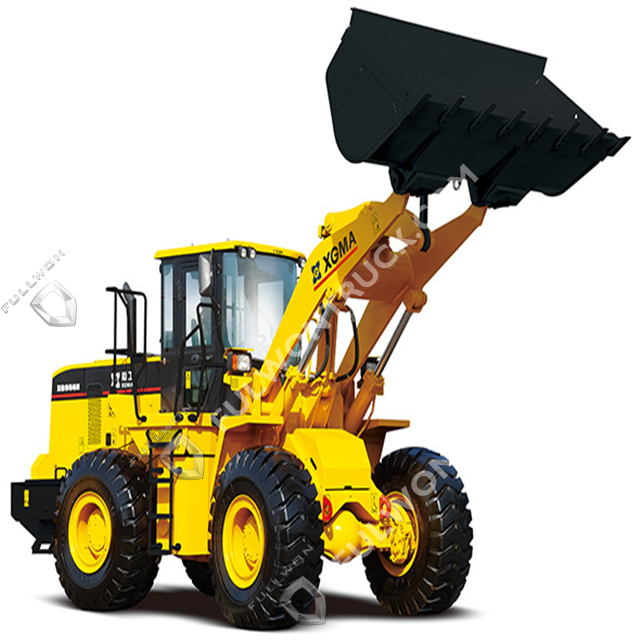

XG956H Wheel Loader Supply by Fullwon

Overall length: 8130mm
Overall height: 3450mm
Overall width: 2880mm
Wheel base: 3200mm
Rated power: 162kw
Availability:
Quantity:
  • XG956H

  • Fullwon

Manufacturer XGMA
Model XG956H
Overall length(mm) 8130
Overall height(mm) 3450
Overall width(mm) 2880
Wheel base(mm) 3200
Ground clearance(mm) 460
Tread(mm) 2240
Bucket Width (mm) 3000
Turn radius(mm) 6195
Min.Turn radius outside of bucket (mm) 7090

4240
Max. Dumping Height(mm) 3355
Dumping Reach(mm) 1160
Digging depth(mm) 60

47
Engine model SC9D220G2
Rated power (kw) 162
Fuel comsumption per hour(g/kw.h ) 215
Rated speed (r/min) 2200
Max torque(N.m) 920
Operating Weight (Tonnes) 17.4
Rated Load(Tonnes) 5
Bucket capacity (m3) 2.2-3.6
Lifting time/Lifting, dumping and lowering(s) 6月11日
Max Breakout force(KN) 170
Max. turning angle(°) ±35°
Fuel tank(L) 340
Hydraulic tank(L) 305
Working pressure of steering hydraulic system(MPa) 15
Working pressure of load hydraulic system(MPa) 18
Travel speeds(km/h) FORWARD 1ST 0~11.5
FORWARD 2ND 0~38
FORWARD 3RD
FORWARD 4TH
REVERSE 1ST 0~16
REVERSE 2ND
REVERSE 3RD
Gear Box XG
Axle XG
Implement pump 175
Distibuting valve SD32.2
Steering Hydraulic system BZZ6-1000
Steering pump 150
Tyre size 23.5-25-16PR
Air Conditioning/Anti-mist when idleing
Heating
Radio/Cassette
Bucket and arm raiseing (limit height) Device ×
Hydraulic Operation system ×
Electricial Monitor and alarm system
Seat Buckle
Head lamp
Reversing Alarm (Back vehicle)
