XG955H Wheel Loader Supply by Fullwon

Overall length: 7710mm
Overall height: 3450mm
Overall width: 2880mm
Wheel base: 2880mm
Rated power: 162/162/160/162kw
Availability:
Quantity:
  • XG955H

  • Fullwon

Manufacturer XGMA
Model XG955H
Overall length(mm) 7710
Overall height(mm) 3450
Overall width(mm) 2880
Wheel base(mm) 2880
Ground clearance(mm) 500
Tread(mm) 2240
Bucket Width (mm) 3000
Turn radius(mm) 5775
Min.Turn radius outside of bucket (mm) 6650

4120
Max. Dumping Height(mm) 3215
Dumping Reach(mm) 1185
Digging depth(mm) 80

47
Engine model SC9D220G2B1/SC11CB220G2B1/6CTA8.3-C125/WD615
Rated power (kw) 162/162/160/162
Fuel comsumption per hour(g/kw.h ) 220/225/229/205
Rated speed (r/min) 2200/2200/2200/2200
Max torque(N.m) 880/844/908/850
Operating Weight (Tonnes) 17.2
Rated Load(Tonnes) 5
Bucket capacity (m3) 2.2-3.6
Lifting time/Lifting, dumping and lowering(s) 5.8/11
Max Breakout force(KN) 170
Max. turning angle(°) ±35°
Fuel tank(L) 220
Hydraulic tank(L) 295
Working pressure of steering hydraulic system(MPa) 15
Working pressure of load hydraulic system(MPa) 16
Travel speeds(km/h) FORWARD 1ST 0~11.5
FORWARD 2ND 0~38
FORWARD 3RD
FORWARD 4TH
REVERSE 1ST 0~16
REVERSE 2ND
REVERSE 3RD
Gear Box XG
Axle XG
Implement pump 209
Distibuting valve D32
Steering Hydraulic system BZZ6-1000
Steering pump 143
Tyre size 23.5-25-16PR
Air Conditioning/Anti-mist when idleing
Heating
Radio/Cassette
Bucket and arm raiseing (limit height) Device
Hydraulic Operation system
Electricial Monitor and alarm system
Seat Buckle
Head lamp
Reversing Alarm (Back vehicle)

XG955H wheel loader supply by Fullwon

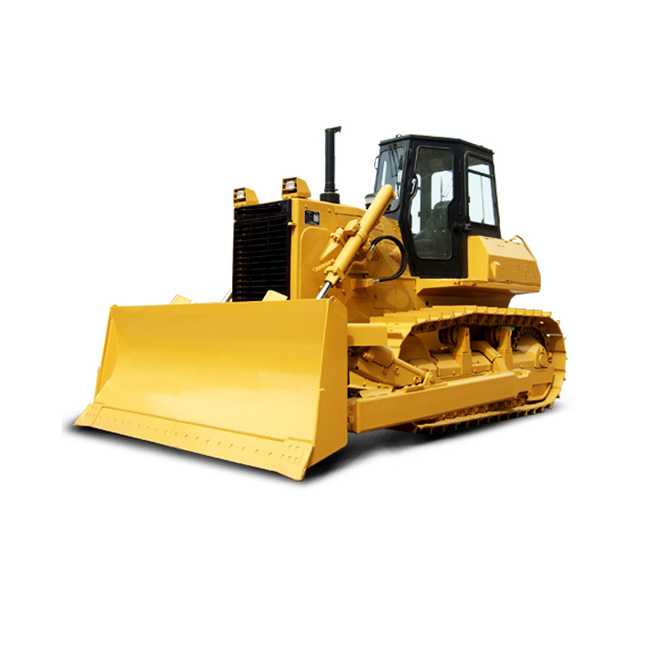

SW165Y-5 bullzoder for the dry land

SW165Y-5 Bullzoder for the Dry Land


SW165Y-5 bullzoder for the dry land

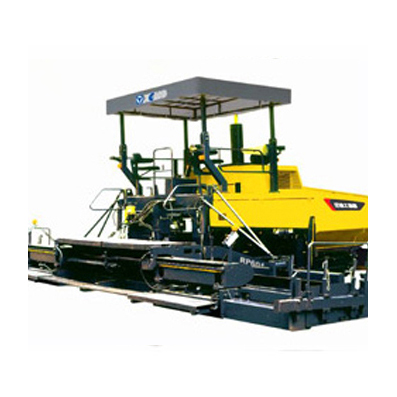

RP601 Road Concrete Paver Supply by Fullwon

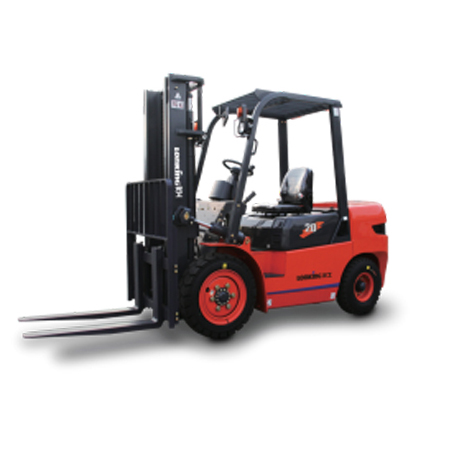

FD20 Diesel Forklift Supply by Fullwon

FD20 Diesel Forklift Supply by Fullwon

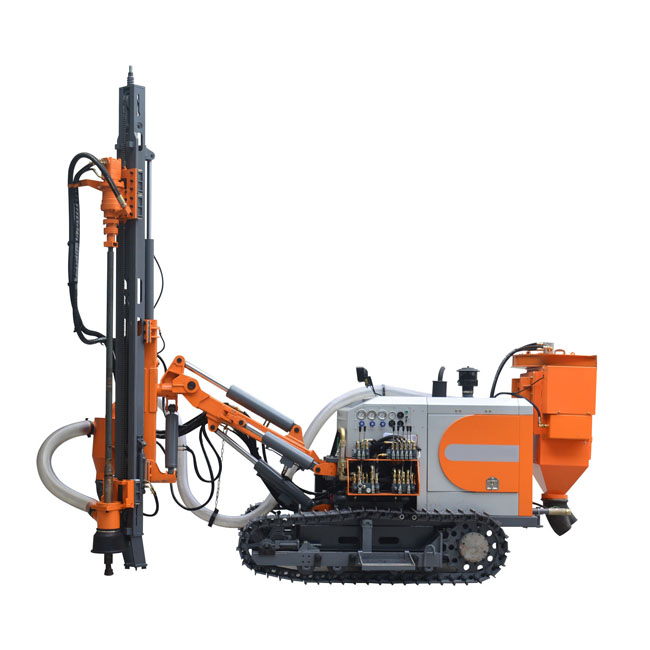

D335 drilling rig supply by Fullwon

D335 Drilling Rig Supply by Fullwon

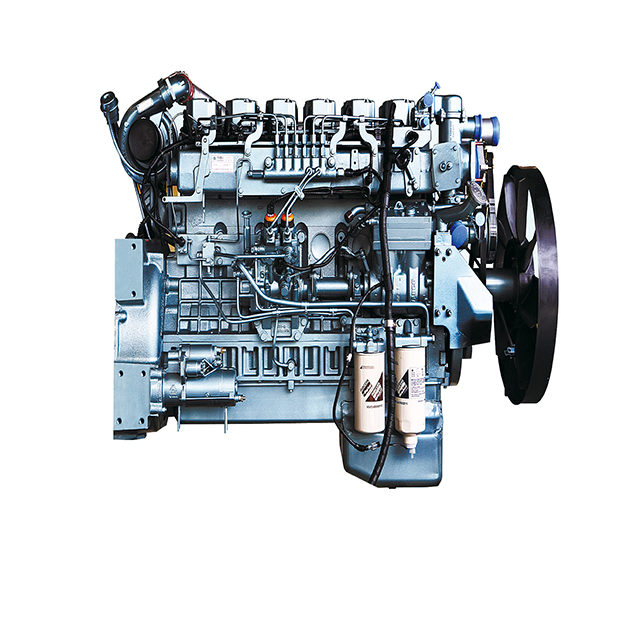

Sinotruk D10 Euro IV Engine

Sinotruk D10 Euro IV Engine

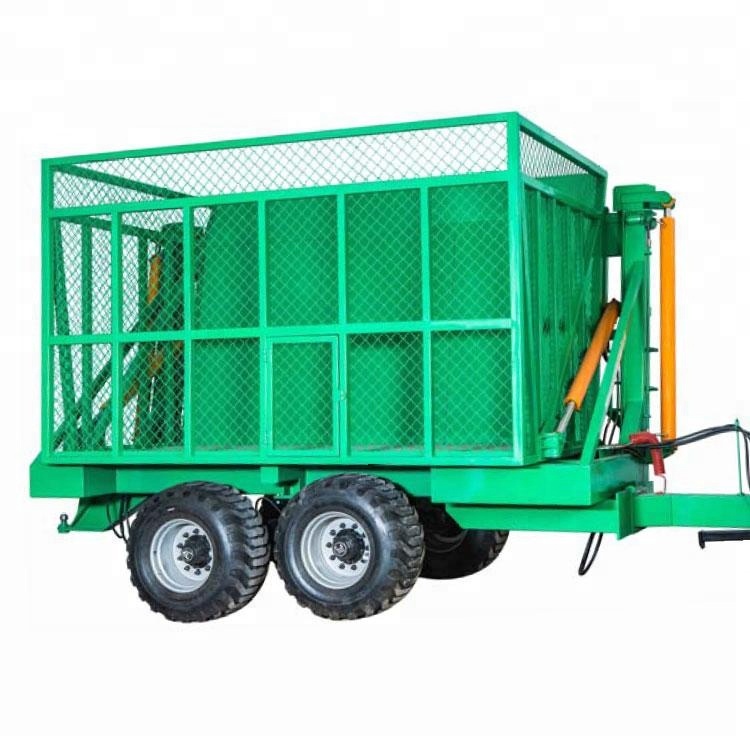

Sugarcane tipper trailer supply by Fullwon

Sugarcane Tipper Trailer Supply by Fullwon

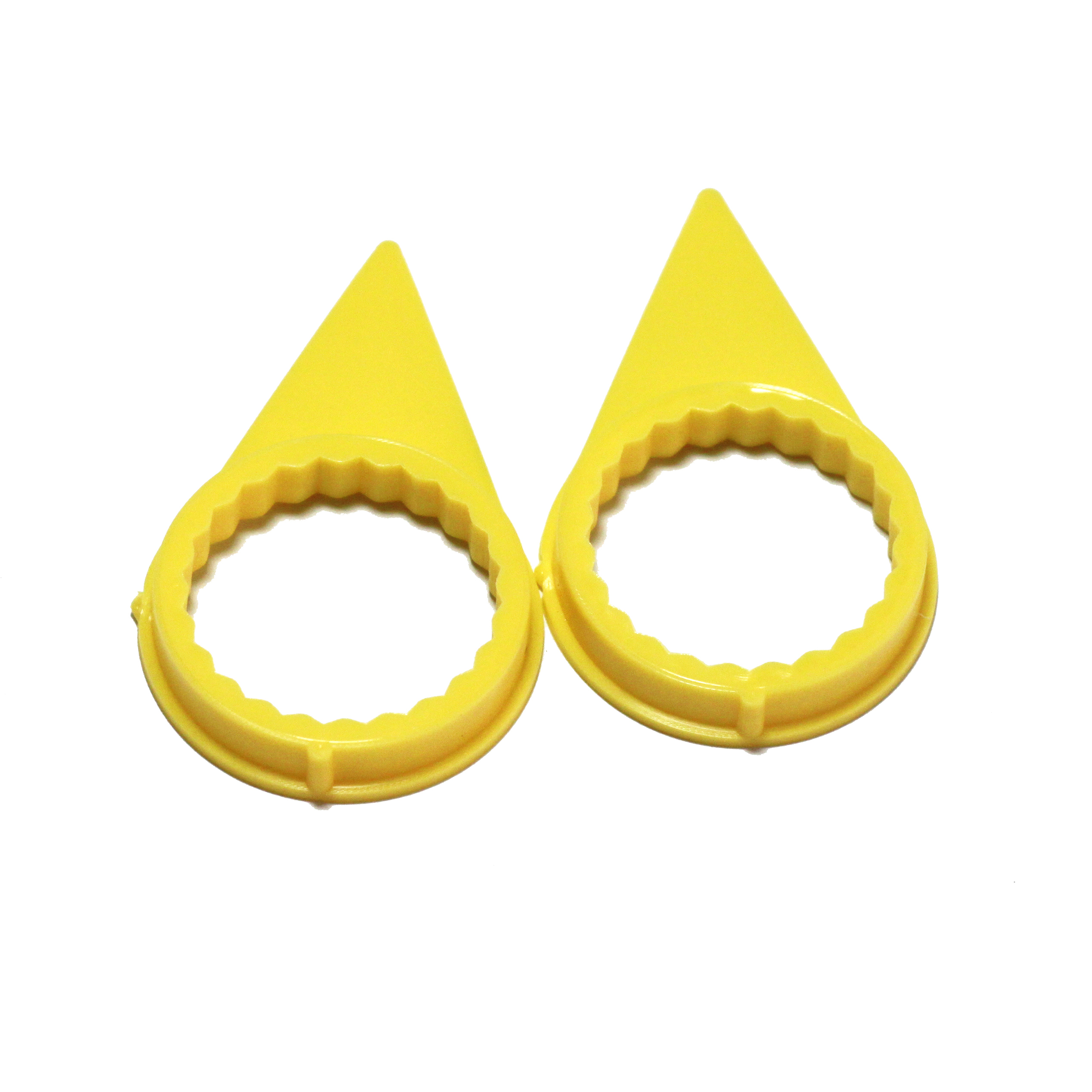

SW19 SEENWON Ring Type Wheel Nut IndicatorSW19 SEENWON Ring Type Wheel Nut Indicator

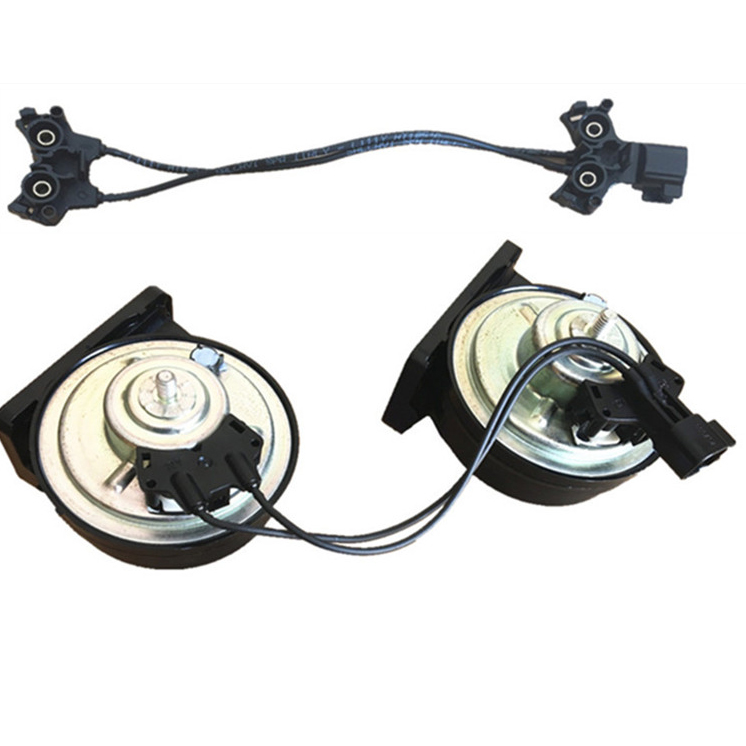

FIAMM Snail Horn               FIAMM Snail Horn

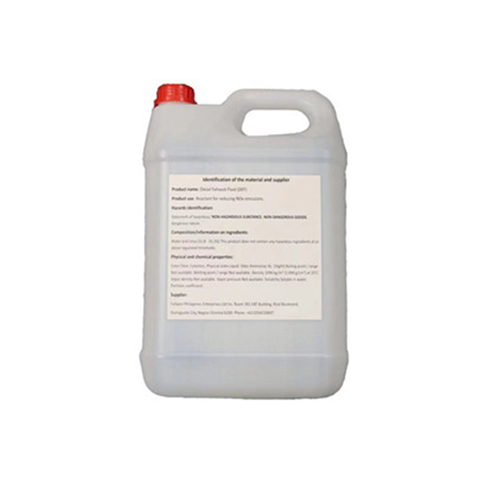

FULLWON Adblue/DEF for SCR SystemFULLWON Adblue/DEF for SCR System

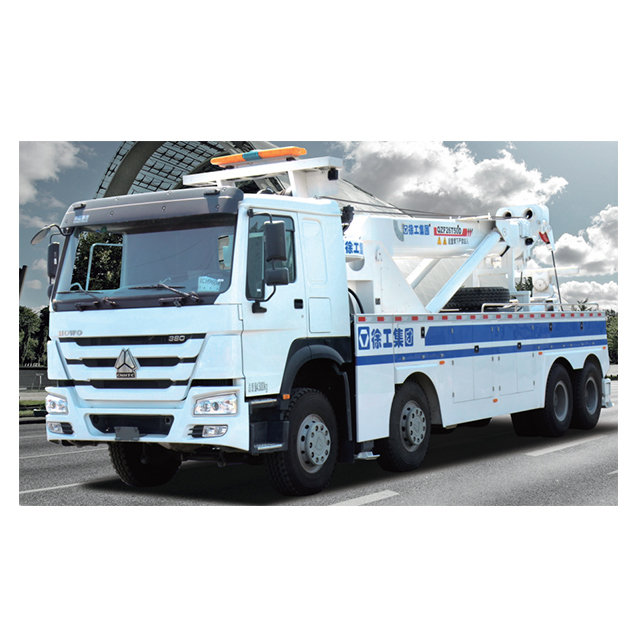

boom and sling integrated type mini Road Wrecker Truck

Boom and Sling Integrated Type Mini Road Wrecker Truck


New Model MQH37A Self Loader Crane for Sale

New Model MQH37A Self Loader Crane for Sale

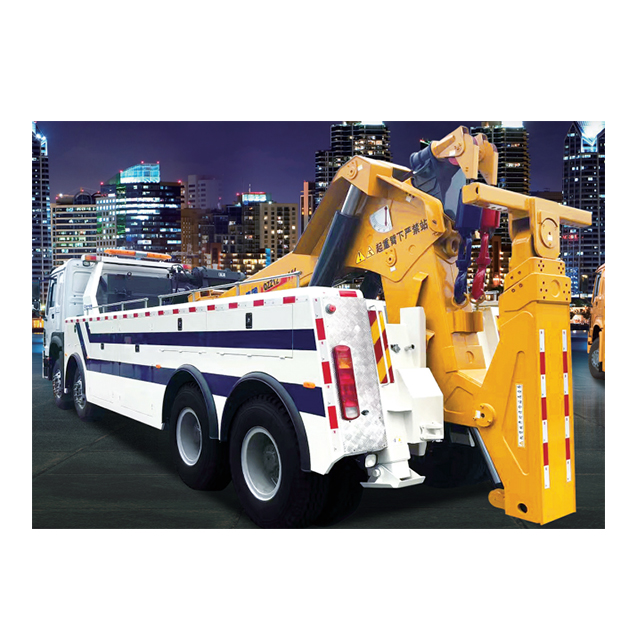

White boom and sling integrated wrecker with sinotruk chassisWhite Boom and Sling Integrated Wrecker with Sinotruk Chassis
