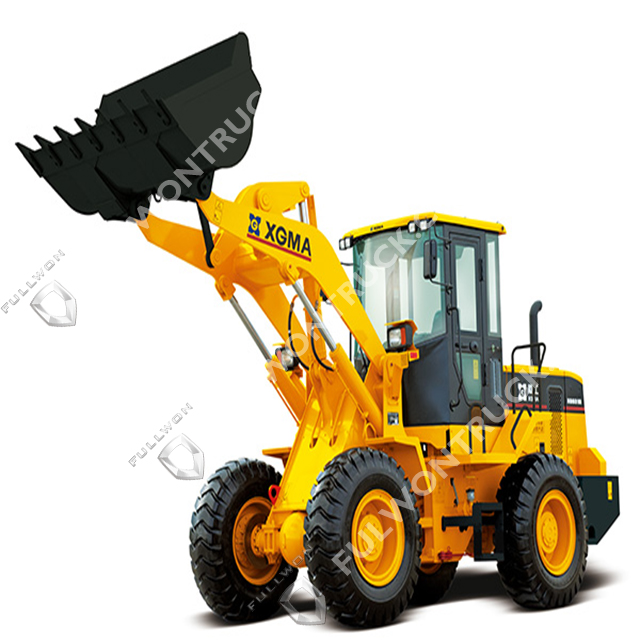

XG931H Wheel Loader Supply by Fullwon

Overall length: 6970mm
Overall height: 3330mm
Overall width: 2245mm
Wheel base: 2750mm
Rated power: 92kw
Quantity:
  • XG931H
  • Fullwon
Model XG931H
Overall length(mm) 6970
Overall height(mm) 3330
Overall width(mm) 2245
Wheel base(mm) 2750
Ground clearance(mm) 358
Tread(mm) 1800
Bucket Width (mm) 2420
Turn radius(mm) 5280
Min.Turn radius outside of bucket (mm) 5860
Max. Dumping Height(mm) 3060
Dumping Reach(mm) 1020
Digging depth(mm) 100
Engine model YC6J125Z-T21
Rated power (kw) 92
Fuel comsumption per hour(g/kw.h ) 235
Rated speed (r/min) 2300
Max torque(N.m) 500
Operating Weight (Tonnes) 10
Rated Load(Tonnes) 3
Bucket capacity (m³) 1.7
Lifting time/Lifting, dumping and lowering(s) 5.7/10.5
Max Breakout force(KN) 100
Max.drawing force (KN) 87.5
Max. turning angle(°) ±35°
Climbing ability(°) 30 °
Fuel tank(L) 178
Hydraulic tank(L) 150
Working pressure of steering hydraulic system(MPa) 13
Working pressure of load hydraulic system(MPa) 16
Travel speeds(km/h) FORWARD   1ST 0~7
FORWARD 2ND 0~13
FORWARD 3RD 0~25
FORWARD 4TH 0~41
REVERSE 1ST 0~9
REVERSE 2ND 0~30
Gear Box Shantui
Axle Fenyi
Implement pump 206
Distibuting valve DF25-2C
Steering Hydraulic system BZZ5-500
Steering pump
Tyre size 17.5-25-12PR
Air Conditioning/Anti-mist when idleing
Heating
Radio/Cassette
Bucket and arm raiseing (limit height) Device ×
Hydraulic Operation system ×
Seat Buckle
Head lamp
Reversing Alarm (Back vehicle)
ROPS/FOPS ×
