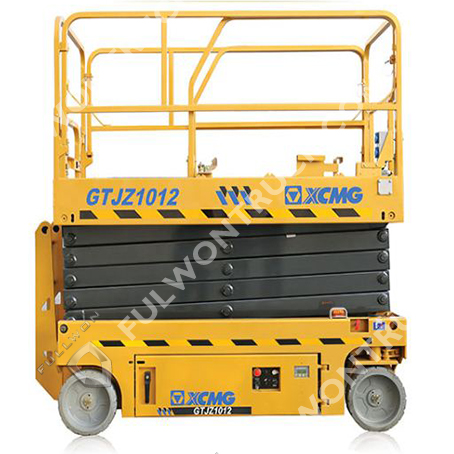

GTJZ1012
Fullwon
| Item | Unit | Parameters |
| a Overall Length | mm | 2485 |
| b Overall Width | mm | 1170 |
| c Overall Height (Guardrail folding) | mm | 1908 |
| d Wheel Base | mm | 1871 |
| Maximum Working Height | m | 12 |
| Maximum Platform Height | m | 10 |
| Maximum Load Capacity | kg | 320 |
| Extension Platform Load | kg | 115 |
| Platform Size | mm | 2276×1120×1254 |
| PlatformExtension Length | mm | 900 |
| Lifting Speed of Working Platform | s | 56-66 |
| Falling Speed of Working Platform | s | 43-58 |
| Total Weight | kg | 3000 |
| Travel Speed (High Speed) | km/h | 3.5 |
| Travel Speed (low Speed) | km/h | 0.8 |
| Max. Travel Platform Height | m | 10 |
| Minimum Turning Radius | m | 0 |
| Minimum Ground Clearance (Pot Hole Protector Rises/Falls) | mm | 101/20 |
| Maximum Grade Ability | % | 25 |
| Tire Specification | _ | Traceless solid |
| 38.1cm×12.7cm | ||
| Battery | V/(Ah) | 4×6(240) |
| Charger | A | 30 |
| Warning Angle of Inclination | ° | 1.5 (Both sides) |
| ° | 3(Front or rear) |
| Item | Unit | Parameters |
| a Overall Length | mm | 2485 |
| b Overall Width | mm | 1170 |
| c Overall Height (Guardrail folding) | mm | 1908 |
| d Wheel Base | mm | 1871 |
| Maximum Working Height | m | 12 |
| Maximum Platform Height | m | 10 |
| Maximum Load Capacity | kg | 320 |
| Extension Platform Load | kg | 115 |
| Platform Size | mm | 2276×1120×1254 |
| PlatformExtension Length | mm | 900 |
| Lifting Speed of Working Platform | s | 56-66 |
| Falling Speed of Working Platform | s | 43-58 |
| Total Weight | kg | 3000 |
| Travel Speed (High Speed) | km/h | 3.5 |
| Travel Speed (low Speed) | km/h | 0.8 |
| Max. Travel Platform Height | m | 10 |
| Minimum Turning Radius | m | 0 |
| Minimum Ground Clearance (Pot Hole Protector Rises/Falls) | mm | 101/20 |
| Maximum Grade Ability | % | 25 |
| Tire Specification | _ | Traceless solid |
| 38.1cm×12.7cm | ||
| Battery | V/(Ah) | 4×6(240) |
| Charger | A | 30 |
| Warning Angle of Inclination | ° | 1.5 (Both sides) |
| ° | 3(Front or rear) |
