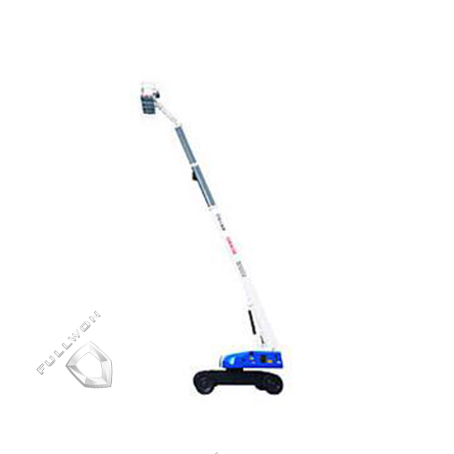

XCMG Aerial Working Platform GKH40 Supply by Fullwon

Total length: 14300 mm
Total width: 2490/3390 mm
Total height: 3220 mm
Axle base: 3600 mm
Max.travel speed : 5 km/h

Quantity:
  • GKH40
  • Fullwon

XCMG Aerial Working Platform GKH40 supply by fullwon

 Items   Unit   Parameters
 Total length   mm  14300
 Total   width          mm  2490/3390
 Total   height         mm  3220
 Axle   base      mm  3600
 Rated work height   m  40
 Max. platform   height     m  38
 Max.work range   m  19
 Arm luffing range   °  -12~+80
 Bent arm luffing   range   °  -65~+70
 Arm luffing   time    s  60
 Arm contraction time   s  90
 Max.rotation speed   r/min  1
 Max.tail   swing        mm  1400
 Platform   size        mm  1800×900×1150
 Platform rotation   range   °  180
 Turntable rotation   radius   mm  2650
 Total weight under travel   condition   kg  18700
 Rated load   kg  150
 Max.   load       kg  450
 Max.travel   speed    km/h  5
 Min. turning   radius      m  7
 Min.ground   clearance      mm  260
 Max. gradeability   %  40
 Engine model
B3.3  Tier3
 Rated engine power   kW/(r/min)  63/(2600)
 Solid tyre
12.00-20/8.5
Maneuverability

• 4 wheel drive and axle expansion ensure good stability, which is suitable for various work environments.

• 360° successive rotation

Maintenance

• It adopts America Cummins engine, featuring strong power, energy-saving and environmental care.

• The wing type engine hood and auxiliary pneumatic open mode is convenient for repair service.

Long life

• Simple and rugged structure, and steel housing, more suitable to work under tough conditions like shipyard.

• The ergonomically designed control panel and optimized button allocation feature comfortable operation.

• The 180° rotation platform can maximally expand the work range.

• The advanced octagon arm support improves the rigidity.

• Solid tyre.

• The galvanizing treatment for the key parts features anti-corrosion.

• The design of internally installed cables is superior to the commonly used outward design.
