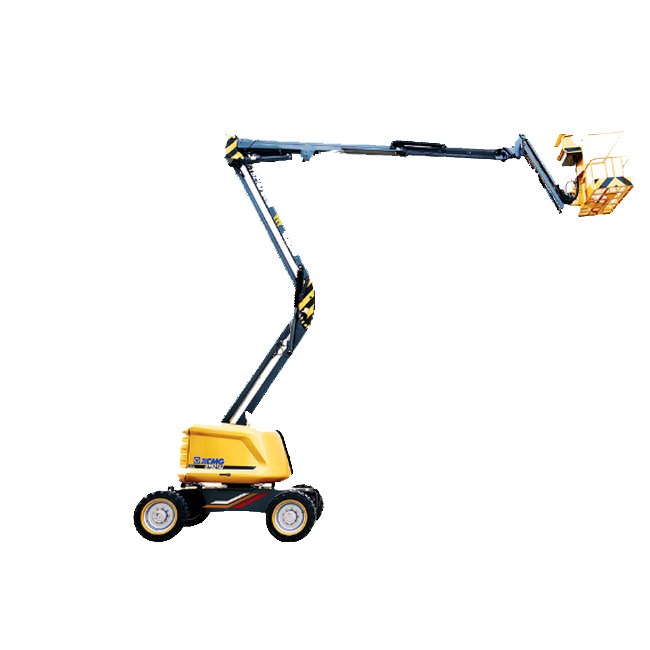

GTBZ14J
Fullwon
| Item | Unit | Parameters |
| a Overall Length | mm | 6690 |
| b Overall Width | mm | 2260 |
| c Overall Height | mm | 2130 |
| d Wheel Base | mm | 2100 |
| Maximum Working Height | m | 15.75 |
| Maximum Platform Height | m | 14.05 |
| Maximum Working Range | m | 8.22 |
| Maximum Load Capacity | kg | 230 |
| 1stBoom luffing Range | ° | 0～+60 |
| 2ndBoom luffing Range | ° | -8～+75 |
| Crank Arm Luffing Range | ° | -60～+80 |
| Rotation Angle of Rotating Platform | ° | 355 |
| Maximum Tail Wagging | mm | 0 |
| Platform Size | mm | 1830×760×1150 |
| Platform turning angle | ° | 180 |
| Total Weight | kg | 6900 |
| Maximum Travel Speed | km/h | 6.1 |
| Minimum Turning Radius | m | 4.5 |
| Minimum Ground Clearance | mm | 250 |
| Maximum Grade Ability | % | 45 |
| Tire Specification | - | 315/55D20 |
| Engine Model | - | Perkins |
| 404D-22 | ||
| Rated Power of Engine | kW/(r/min) | 38/（3000） |
Maneuverability
• 4 wheel drive and axle expansion ensure good stability, which is suitable for various work environments.
• 360° successive rotation
Maintenance
• It adopts America Cummins engine, featuring strong power, energy-saving and environmental care.
• The wing type engine hood and auxiliary pneumatic open mode is convenient for repair service.
Long life
• Simple and rugged structure, and steel housing, more suitable to work under tough conditions like shipyard.
• The ergonomically designed control panel and optimized button allocation feature comfortable operation.
• The 180° rotation platform can maximally expand the work range.
• The advanced octagon arm support improves the rigidity.
• Solid tyre.
• The galvanizing treatment for the key parts features anti-corrosion.
• The design of internally installed cables is superior to the commonly used outward design.
