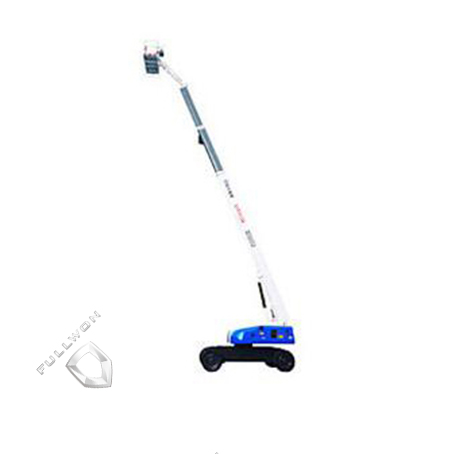

GKS38
Fullwon
Items | Unit | Parameters |
Total length | mm | 13250 |
Total width | mm | 1 |
Total height | mm | 3100 |
Axle base | mm | 3600 |
Rated work height | m | 38 |
Max. platform height | m | 36 |
Max.work range | m | 19 |
Arm luffing range | ° | -12~+80 |
Arm luffing time | s | 60 |
Arm contraction time | s | 90 |
Max.rotation speed | r/min | 1 |
Max.tail swing | mm | 1400 |
Platform size | mm | 1800×900×1150 |
Platform rotation range | ° | 180 |
Turntable rotation radius | mm | 2650 |
Total weight under travel condition | kg | 18500 |
Rated load | kg | 150 |
Max. load | kg | 450 |
Max.travel speed | km/h | 5 |
Min. turning radius | m | 7 |
Min.ground clearance | mm | 260 |
Max. gradeability | % | 40 |
Engine model | B3.3 Tier3 | |
Rated engine power | kW/(r/min) | 63/(2600) |
Solid tyre | 12.00-20/8.5 |
• 4 wheel drive and axle expansion ensure good stability, which is suitable for various work environments.
• 360° successive rotation
Maintenance
• It adopts America Cummins engine, featuring strong power, energy-saving and environmental care.
• The wing type engine hood and auxiliary pneumatic open mode is convenient for repair service.
Long life
• Simple and rugged structure, and steel housing, more suitable to work under tough conditions like shipyard.
• The ergonomically designed control panel and optimized button allocation feature comfortable operation.
• The 180° rotation platform can maximally expand the work range.
• The advanced octagon arm support improves the rigidity.
• Solid tyre.
• The galvanizing treatment for the key parts features anti-corrosion.
• The design of internally installed cables is superior to the commonly used outward design.
