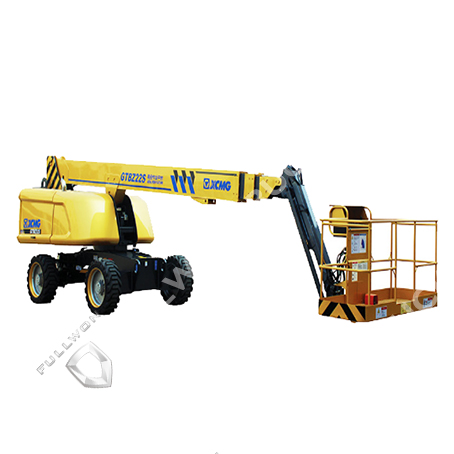

XCMG Aerial Working Platform GTBZ22S Supply by Fullwon

Overall Length:10150 mm
Overall width: 2490 mm
Overall height: 2800 mm
Wheel Base: 2500 mm
Max.travel speed : 6 km/h
Availability:
Quantity:
  • GTBZ22S

  • Fullwon

Item Unit Parameter
a Overall Length mm 10150
b Overall Width mm 2490
c Overall Height mm 2800
d Wheel Base mm 2500
Maximum Working Height m 23.7
Maximum Platform Height  m 22
Maximum Working Range m 18.3
Maximum Load Capacity kg 340
Boom Luffing Range ° -5~+75
Rotation Angle of Rotating Platform ° 360
Maximum Tail Wagging mm 1550
Platform Size mm 2400×900
Rotation Angle of Platform ° 180
Total Weight kg 12500
Maximum Travel Speed km/h 6
Minimum Turning Radius m 6
Minimum Ground Clearance mm 230
Maximum Grade Ability % 45
Tire Specification - 355/55D625
Engine Model - Perkins 404D-22T/Deutz D2011 L04i
Rated Power of Engine kW/(r/min) 43/(2600)
41/(2300)
