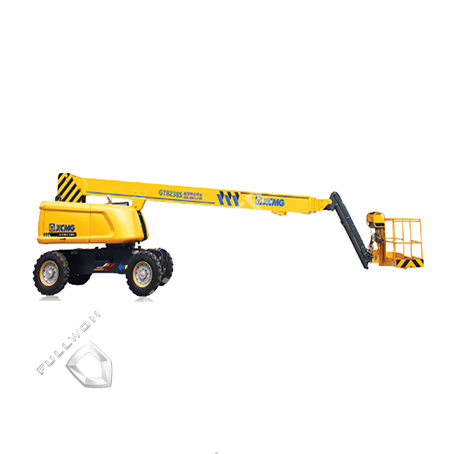

GTBZ38S
Fullwon
| Item | Unit | Parameter |
| a Overall Length | mm | 14060 |
| b Overall Width (shaft retracts/stretches) | mm | 13800 |
| c Overall Height | mm | 3000 |
| d Wheel Base | mm | 3800 |
| Maximum Working Height | m | 39.9 |
| Maximum Platform Height | m | 38.2 |
| Maximum Working Range | m | 23.9 |
| Maximum Load Capacity | kg | 230/340 |
| Boom Luffing Range | ° | -7～+75 |
| Rotation Angle of Rotating Platform | ° | 360° |
| Maximum Tail Wagging(shaft retracts/stretches) | mm | 2085/1430 |
| Platform Size | mm | 2400×900 |
| Rotation Angle of Platform | ° | 180 |
| Total Weight | kg | 20600 |
| Maximum Travel Speed | km/h | 5 |
| Minimum Turning Radius(shaft retracts/stretches) | m | 10.8/6.8(Two-turn) |
| 5.8/6.8(Four -turn) | ||
| Minimum Ground Clearance | mm | 320 |
| Maximum Grade Ability | % | 40 |
| Tire Specification | - | 445/65D710 |
| Engine Model | - | Perkins 1104D-44T Cummins B3.3-85HP |
| Rated Power of Engine | kW/(r/min) | 55.5/2400 63/2600 |
