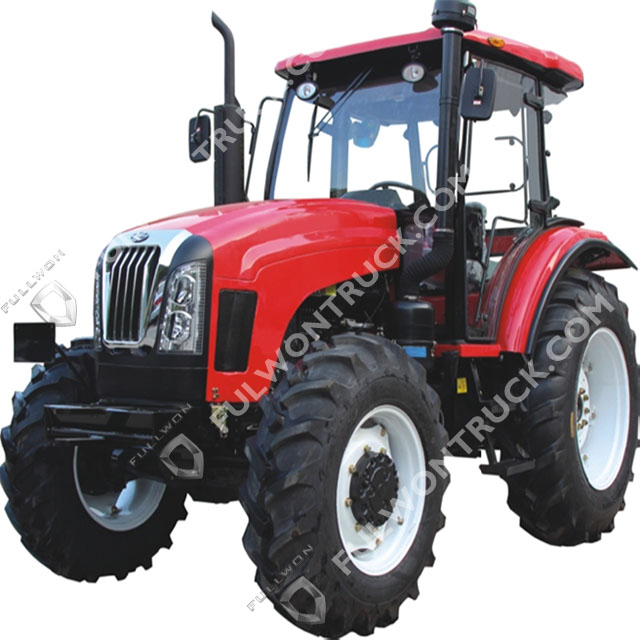

SW904
Fullwon
MAIN TECHNICAL PARAMETERS | |||
Tractor Model | SW904 | SW900 | |
Drive Type | 4×4 | 4×2 | |
Overall Dimension L×W×H(mm) | 4396×2038×2810 | 4080×2038×2810 | |
Wheel base(mm) | 2195 | 2195 | |
Front wheel tread(mm) | 1610 | 1385-1685 | |
Rear wheel tread(mm) | 1620-2020 | 1620-2020 | |
Min. ground clearance(mm) | 379 | 470 | |
Min. steering radius | Unilateral brake(m) | 4.2±0.3 | 3.6±0.2 |
Not unilateral brake(m) | 4.9±0.3 | 4.0±0.2 | |
Min. operating weight (KG) | 4090 | 3770 | |
Gearbox gears number | 16F+8R | 16F+8R | |
Speed | Forward(Kw/h) | 1.58-33.69 | 1.58-33.69 |
Reverse(Kw/h) | 2.41-34.67 | 2.41-34.67 | |
Engine | Model | LR4M5-23 | LR4M5-23 |
Rated power (Kw) | 66.2 | 66.2 | |
Rated speed (r/min) | 2300 | 2300 | |
Tires spec. | Front tires | 12.4-24 | 6.5-20 |
Rear tires | 16.9-34 | 16.9-34 | |
Steering Type | Full hydraulic front wheels steering | Full hydraulic front wheels steering | |
Max. lifting force( KN ) | 15.9 | 15.9 | |
PTO | Type | Rear-mounted, Independent type | Rear-mounted, Independent type |
Speed (r/min) | 760/1000 or 540/1000 or 540/760 or 760/850 | 760/1000 or 540/1000 or 540/760 or 760/850 | |
Power(Kw) | 56.3 | 56.3 | |
Control type of ploughing depth | Height control & flotation control | Height control & flotation control | |
Max. traction force (KN) | 21.3 | 17.7 | |
Front / rear Ballast (KG) | 270/470 | 270/470 | |
Notice: As our products will be improved continuously , all above parameters are subject to modification without notice. | |||
MAIN FEATURES: | |||
900/1000/1100/754/804/904/1004/1104 wheeled tractors Main Features: 1. Adopt YTO diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency; 2. Double-function clutch, operate independently, high transmission capacity, effective and reliable, comfortable operation; 3. Gearbox using 4 × (4+2) engaging sleeve, shuttle-type gearshift , there are 16 forward gears, 8reverse gears, reasonable match between the gears, and have high efficiency; 4. Independent power take off device, smooth transmission, large capacity; 5. Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save energy; 6. Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good; 7. Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned; 8. Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio; 9. New streamlined appearance, generous, modern, fashion; |
