SW804
Fullwon
| MAIN TECHNICAL PARAMETERS | ||

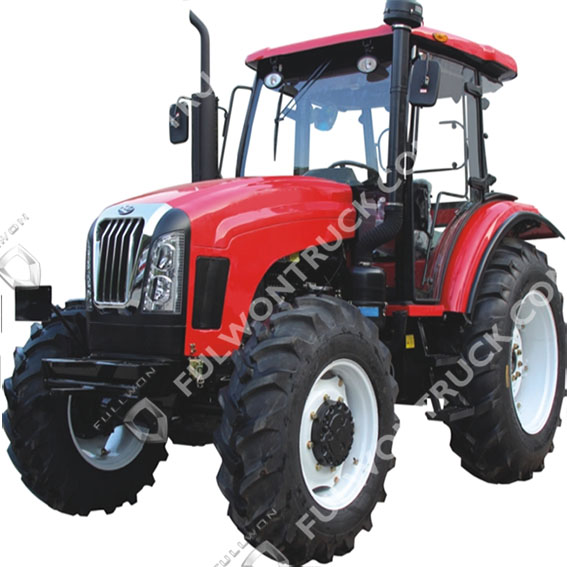

| Tractor Model | SW804 | |
| Drive Type | 4×4 | |
| Overall Dimension L×W×H(mm) | 4396×2038×2810 | |
| Wheel base(mm) | 2195 | |
| Front wheel tread(mm) | 1610 | |
| Rear wheel tread(mm) | 1620-2020 | |
| Min. ground clearance(mm) | 379 | |
| Min. steering radius | Unilateral brake(m) | 4.2±0.3 |
| Not unilateral brake(m) | 4.9±0.3 | |
| Min. operating weight (KG) | 4090 | |
| Gearbox gears number | 16F+8R | |
| Speed | Forward(Kw/h) | 1.58-33.69 |
| Reverse(Kw/h) | 2.41-34.67 | |
| Engine | Model | LR4B5-23 |
| Rated power (Kw) | 59 | |
| Rated speed (r/min) | 2300 | |
| Tires spec. | Front tires | 12.4-24 |
| Rear tires | 16.9-34 | |
| Steering Type | Full hydraulic front wheels steering | |
| Max. lifting force( KN ) | 14.2 | |
| PTO | Type | Rear-mounted, Independent type |
| Speed (r/min) | 760/1000 or 540/1000 or 540/760 or 760/850 | |
| Power(Kw) | 51.2 | |
| Control type of ploughing depth | Height control & flotation control | |
| Max. traction force (KN) | 18.6 | |
| Front / rear Ballast (KG) | 270/470 | |
| Notice: As our products will be improved continuously , all above parameters are subject to modification without notice. | ||
| MAIN FEATURES: | ||
| 900/1000/1100/754/804/904/1004/1104 wheeled tractors Main Features: 1. Adopt YTO diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency; 2. Double-function clutch, operate independently, high transmission capacity, effective and reliable, comfortable operation; 3. Gearbox using 4 × (4+2) engaging sleeve, shuttle-type gearshift , there are 16 forward gears, 8reverse gears, reasonable match between the gears, and have high efficiency; 4. Independent power take off device, smooth transmission, large capacity; 5. Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save energy; 6. Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good; 7. Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned; 8. Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio; 9. New streamlined appearance, generous, modern, fashion; | ||
