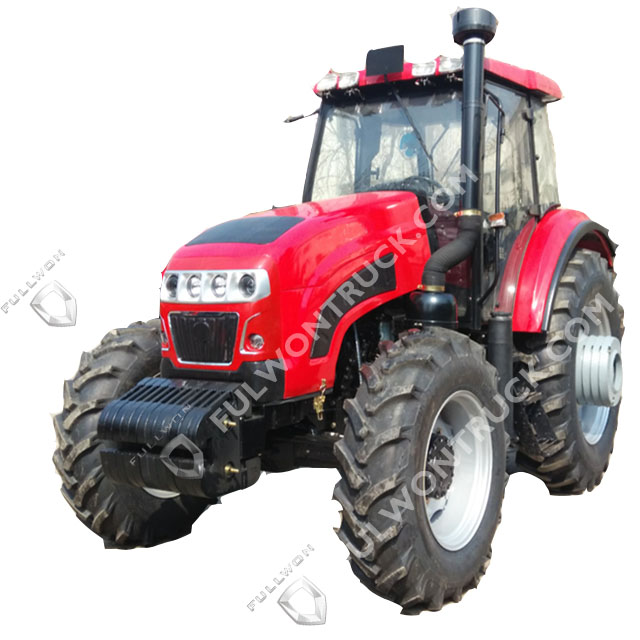

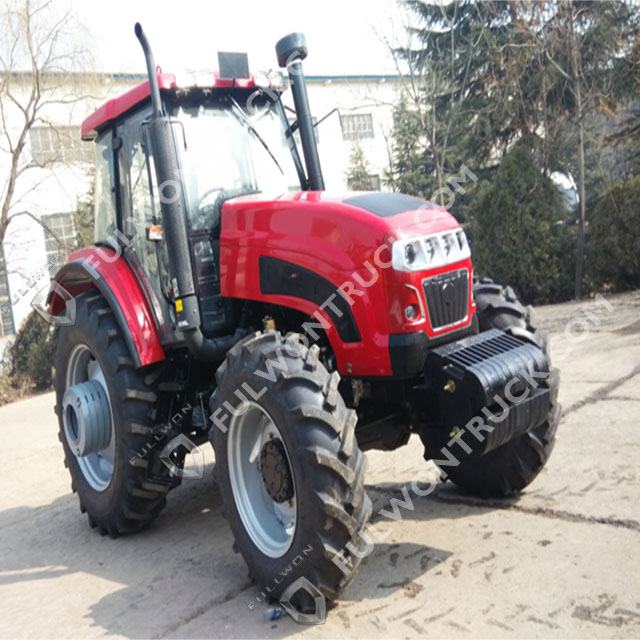

160Hp Diesel Farm Tractor Supply by Fullwon

SW1604
Drive Type : 4×4
Overall Dimension L×W×H: 5050×2370×3000 mm
Wheel base: 2860 mm
Availability:
Quantity:
  • SW1604

  • Fullwon

MAIN TECHNICAL PARAMETERS
Tractor Model  SW1604
Drive Type  4×4
Overall Dimension    L×W×H(mm)  5050×2370×3000
Wheel base(mm) 2860
Front wheel tread(mm) 1822-2153   (1910)
Rear wheel tread(mm) 1662-2262   (1662)
Min. ground clearance(mm) 470
Min.  steering radius 7
Min. operating weight (KG) 4550
Gearbox  gears number 12F+4R
Speed  Forward(Kw/h) 29.63-2.19
Reverse(Kw/h) 13.83-4.72
Engine Model LR6M3Z-22
Rated power (Kw) 118
Type 6   cylinders, in line, water cooling, 4 strokes, direct injection,   turbo-charged
Rated speed (r/min) 2200
Tires spec. Front   tires 14.9-26
Rear tires 18.4-38
Steering Type Full   hydraulic  front wheels steering
Max. lifting force( KN ) 28
PTO Type Rear-mounted,   Independent type
Speed (r/min) 540/1000
Notice: As our products will be improved continuously , all   above parameters are subject to modification without notice.
MAIN FEATURES:
1604 wheeled tractors

    Main Features:
    1. Adopt YTO diesel engine, good reliability, large reserves of torque, low   fuel consumption, high economic efficiency;
    2. Double-function clutch, operate independently, high transmission   capacity, effective and reliable, comfortable operation;
    3. Gearbox using 4 × (4+2)  engaging   sleeve, shuttle-type gearshift  , there   are 16 forward gears, 8reverse gears, reasonable match between the gears, and   have high efficiency;
    4. Independent power take off device, smooth transmission, large   capacity;
    5. Full hydraulic front wheels steering, independent oil circuit for   steering system, manipulating flexible, reliable, and save energy;
    6. Adopt hydrostatic disc-type brakes, a large braking torque, the braking   effect is good;
    7. Adopt high pressure type lifting device, reliable, easy maintenance,   multi-hydraulic output can be optioned;
    8. Final transmission adopts planetary gear mechanism, compact structure,   large reduction ratio;
    9. New streamlined appearance, generous, modern, fashion;
