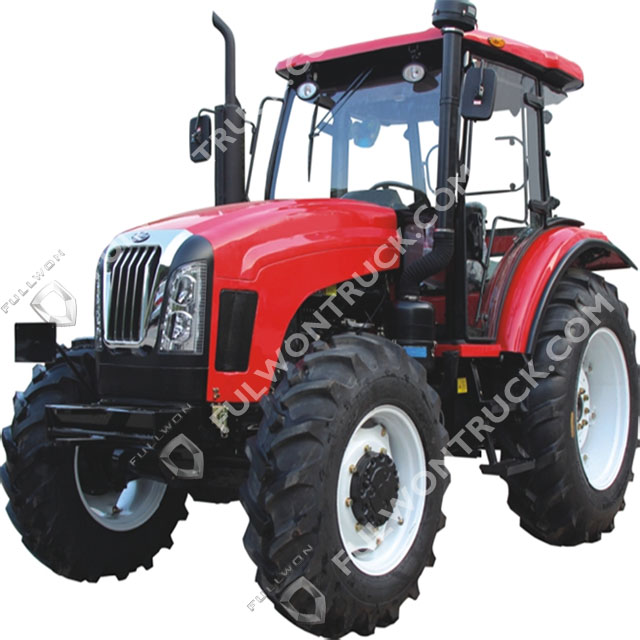

85Hp Diesel Farm Tractor Supply by Fullwon

SW854
Drive Type : 4×4
Overall Dimension L×W×H: 4396×2038×2810 mm
Wheel base: 2195 mm

Quantity:
  • SW854
  • Fullwon
MAIN TECHNICAL PARAMETERS
Tractor Model  SW854
Drive Type  4×4
Overall Dimension    L×W×H(mm)  4396×2038×2810
Wheel base(mm) 2195
Front wheel tread(mm) 1610
Rear wheel tread(mm) 1620-2020
Min. ground clearance(mm) 379
Min.  steering radius Unilateral   brake(m)  4.2±0.3
Not unilateral brake(m) 4.9±0.3
Min. operating weight (KG) 4090
Gearbox  gears number 16F+8R
Speed  Forward(Kw/h) 1.58-33.69
Reverse(Kw/h) 2.41-34.67
Engine Model LR4B5-23
Rated power (Kw) 62.5
Rated speed (r/min) 2300
Tires spec. Front   tires 12.4-24
Rear tires 16.9-34
Steering Type Full   hydraulic  front wheels steering
Max. lifting force( KN ) 15
PTO Type Rear-mounted,   Independent type
Speed (r/min) 760/1000   or 540/1000 or 540/760 or 760/850
Power(Kw) 53.1
Control type of ploughing depth Height   control & flotation control
Max. traction force (KN) 19.7
Front / rear Ballast (KG) 270/470
Notice: As our products will be improved continuously , all   above parameters are subject to modification without notice.
MAIN FEATURES:
900/1000/1100/754/804/904/1004/1104 wheeled tractors

    Main Features:
    1. Adopt YTO diesel engine, good reliability, large reserves of torque, low   fuel consumption, high economic efficiency;
    2. Double-function clutch, operate independently, high transmission   capacity, effective and reliable, comfortable operation;
    3. Gearbox using 4 × (4+2)  engaging   sleeve, shuttle-type gearshift  , there   are 16 forward gears, 8reverse gears, reasonable match between the gears, and   have high efficiency;
    4. Independent power take off device, smooth transmission, large   capacity;
    5. Full hydraulic front wheels steering, independent oil circuit for steering   system, manipulating flexible, reliable, and save energy;
    6. Adopt hydrostatic disc-type brakes, a large braking torque, the braking   effect is good;
    7. Adopt high pressure type lifting device, reliable, easy maintenance,   multi-hydraulic output can be optioned;
    8. Final transmission adopts planetary gear mechanism, compact structure,   large reduction ratio;
    9. New streamlined appearance, generous, modern, fashion;
