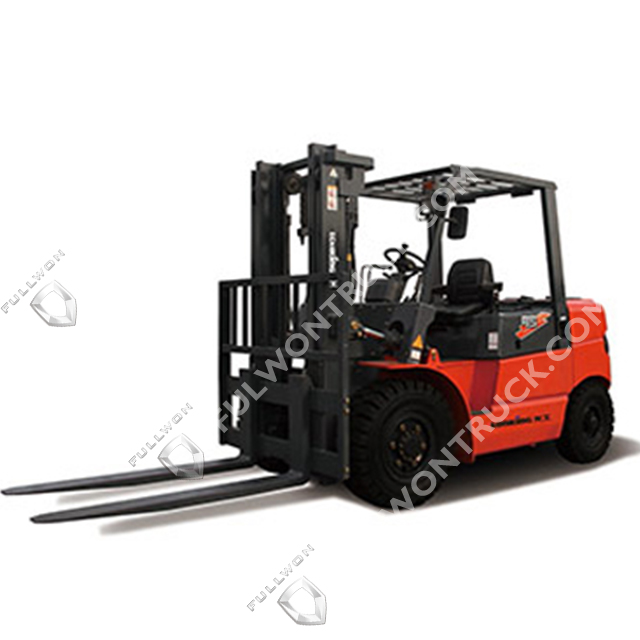

LG45DT Diesel Forklift Supply by Fullwon

Rated capacity: 4500 kg
JLoadcentre: 500 mm
h1STDMaxliftingheight: 3000 mm
Max.travelingspeed: 25 km/h
Availability:
Quantity:
  • LG45DT

  • Fullwon

MODEL LG45DT
Power type Diesel
Rated capacity (Kg) 4500
J Load centre (mm) 500
h1 STD Max lifting height (mm) 3000
h3 Free lift height (mm) 150
L5×W×T STD Fork size (mm) 1070×150×55
Mast tilt angle (deg)  6/12
L3 Front overhang (mm) 555
L4 Rear overhang (mm) 540
R1 Min. turning radius (mm) 2740
Min .width for pallets 1,000×1,200 crossways (L×W) (mm) 4495
Speed(load/unload)
Max.traveling speed (km/h) 25
Max. lifting speed (mm/s) 460/520
Max. gradient (%) 22
STD Dead weight (kg) 6700
S/P Tread(front/rear) (mm) 1180/1190
L2 Axle distance (mm) 2000
Min.ground clearance
m2 Mast (mm) 175
m1 Frame (mm) 215
Optinal Engine
Engine Model 4DX23 S6S-229 YN4EL076-43CR YN4EZ080 YN4EL089
Rated Power(kw/rpm) 60/2200 52/2300 55/2200 58.8/2200 62.5/2200
Max.Torque(Nm/rpm) 320/1500 248/1700 310/1500-1800 276/1500-1800 320/1600
Number of Cylinders 4 4 4 4 4
Displacement (L) 3.8 4.96 3.8 3.8 3.8
