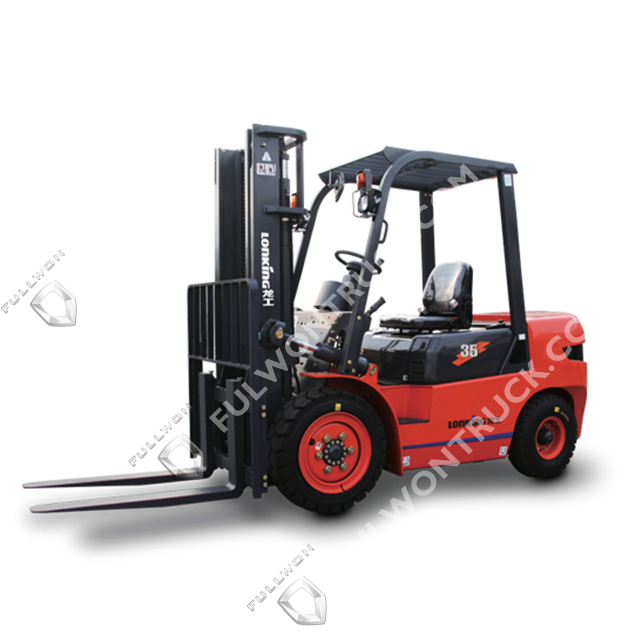

FD35(T) Diesel Forklift Supply by Fullwon

Rated capacity: 3500 kg
JLoadcentre: 500 mm
h1STDMaxliftingheight: 3000 mm
Max.travelingspeed: 20 km/h
Availability:
Quantity:
  • FD35(T)

  • Fullwon

MODEL FD35(T)
Powertype Diesel
Ratedcapacity(Kg) 3500
JLoadcentre(mm) 500
h1STDMaxliftingheight(mm) 3000
h3Freeliftingheight(mm) 170
L5*W*TSTDForksize(mm) 1070×125×50
Masttiltangle(deg)  6/12
L3Frontoverhang(mm) 498
L4Rearoverhang(mm) 600
R1Min.turningradius(mm) 2490
Min.width for pallets 1,000×1,200 crossways (L×W)(mm) 4200
Speed(load/unload)
Max.travelingspeed(km/h) 20
Max,liftingspeed(mm/s)(load/unload) 380/400
Max.gradient(%) 20
STD Dead weight(kg) 4650
S/PTread(frnt/rear)(mm) 1000/980
L2Axledistance(mm) 1700
Min.groundclearance
m2Mast(mm) 130
m1Frame(mm) 160
Optinal Engine
Engine Model C490BPG-225 QC490GP-159 C02-624 YN4A055-31CR
Rated Power(kw/rpm) 40/2500 39/2500 36.8/2500 36.8/2600
Max.Torque(Nm/rpm) 156/1800 157/2000 157/1800 180/1800
Number of Cylinders 4 4 4 4
Displacement (L) 2.67 2.67 2.67 2.67
