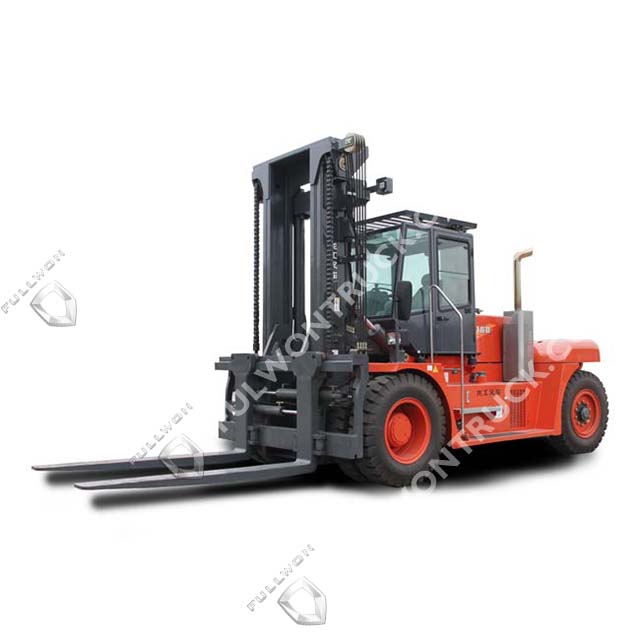

LG160DT
Fullwon
| MODEL | LG160DT |
| Power type | Diesel |
| Rated capacity (Kg) | 16000 |
| J Load centre (mm) | 600 |
| h1 STD Max lifting height (mm) | 3500 |
| h3 Free lifting height (mm) | 0 |
| L5*W*T STD Fork size (mm) | 1800×180×100 |
| Mast tilt angle (deg) | 6/12 |
| L3 Front overhang (mm) | 979 |
| L4 Rear overhang (mm) | 931 |
| Overall dimension | |
| L1 Overall length(mm) | 7500 |
| W1Overall width (mm) | 2776 |
| h2 Mast lowered height (mm) | 3926 |
| h4 Overhead guard height (mm) | 3566 |
| R1 Min.turning radius (mm) | 5300 |
| Min .intersecting aisle (mm) | 8200 |
| Speed(load/unload) | |
| Max.traveling speed (km/h)（F/R） | 27/27 |
| Max,lifting speed (mm/s)（load/unload） | 300/450 |
| Max.gradient (%) | 20 |
| Dead weight (kg) | 21500 |
| S/P Tread（frnt/rear）(mm) | 2064/2120 |
| L2 Axle distance (mm) | 3800 |
| Min.ground clearance | |
| m2 Mast (mm) | 285 |
| m1 Frame (mm) | 340 |
| STD Engine | |
| Rated power（kw） |
