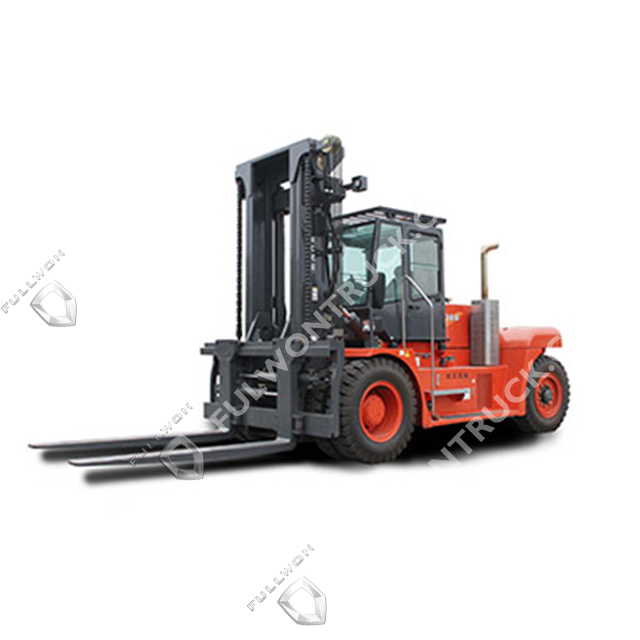

LG160DTSZ/SA
Fullwon
| MODEL | LG160DTSZ/SA |
| Powertype | Diesel |
| Ratedcapacity(Kg) | 16000 |
| JLoadcentre(mm) | 1200 |
| h1STDMaxliftingheight(mm) | 4000 |
| h3Freeliftingheight(mm) | 0 |
| L5*W*TSTDForksize(mm) | 2400×250×100 |
| Masttiltangle(deg) | 5/10 |
| L3Frontoverhang(mm) | 925 |
| L4Rearoverhang(mm) | 795 |
| R1Min.turningradius(mm) | 5175 |
| Min.width for pallets 1,000×1,200 crossways (L×W)(mm) | 4700 |
| Speed(load/unload) | |
| Max.travelingspeed(km/h) | 30 |
| Max,liftingspeed(mm/s)（load/unload） | 320/360 |
| Max.gradient(%) | 28 |
| STD Dead weight(kg) | 24000 |
| S/PTread（frnt/rear）(mm) | 1878/2020 |
| L2Axledistance(mm) | 3750 |
| Min.groundclearance | |
| m2Mast(mm) | 240 |
| m1Frame(mm) | 280 |
| Optinal Engine | |
| Engine Model | QSB6.7-C190 |
| Rated Power（kw/rpm） | 142/2200 |
| Max.Torque（Nm/rpm） | 931/1500 |
| Number of Cylinders | 6 |
| Displacement （L） | 6.7 |
| MODEL | LG160DTSZ/SA |
| Powertype | Diesel |
| Ratedcapacity(Kg) | 16000 |
| JLoadcentre(mm) | 1200 |
| h1STDMaxliftingheight(mm) | 4000 |
| h3Freeliftingheight(mm) | 0 |
| L5*W*TSTDForksize(mm) | 2400×250×100 |
| Masttiltangle(deg) | 5/10 |
| L3Frontoverhang(mm) | 925 |
| L4Rearoverhang(mm) | 795 |
| R1Min.turningradius(mm) | 5175 |
| Min.width for pallets 1,000×1,200 crossways (L×W)(mm) | 4700 |
| Speed(load/unload) | |
| Max.travelingspeed(km/h) | 30 |
| Max,liftingspeed(mm/s)（load/unload） | 320/360 |
| Max.gradient(%) | 28 |
| STD Dead weight(kg) | 24000 |
| S/PTread（frnt/rear）(mm) | 1878/2020 |
| L2Axledistance(mm) | 3750 |
| Min.groundclearance | |
| m2Mast(mm) | 240 |
| m1Frame(mm) | 280 |
| Optinal Engine | |
| Engine Model | QSB6.7-C190 |
| Rated Power（kw/rpm） | 142/2200 |
| Max.Torque（Nm/rpm） | 931/1500 |
| Number of Cylinders | 6 |
| Displacement （L） | 6.7 |
