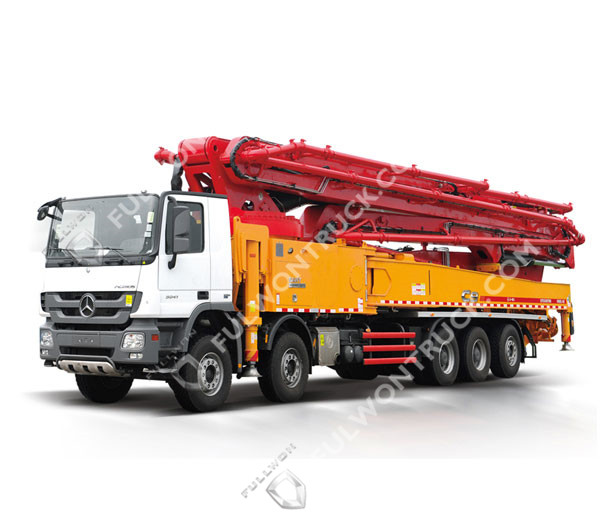

SWG5530THB 62
Seenwon
| Model | Unit | |||
| Overall | Length | mm | 15730 | |
| Specification | Width | mm | 2500 | |
| Height | mm | 4000 | ||
| Dead weight | kg | 53000 | ||
| Vertical reach | m | 62 | ||
| Boom & Outrigger Specification | Horizontal reach | m | 57.6 | |
| Reach depth | m | 42 | ||
| Unfolding reach | m | 16.2 | ||
| 1st section | Length | mm | 12140 | |
| Articulation | 90° | |||
| 2nd section | Length | mm | 10090 | |
| Articulation | 180° | |||
| 3rd section | Length | mm | 9570 | |
| Articulation | 180° | |||
| 4th section | Length | mm | 12280 | |
| Articulation | 230° | |||
| 5th section | Length | mm | 7945 | |
| Articulation | 200° | |||
| 5th section | Length | mm | 5100 | |
| Articulation | 100° | |||
| Rotation | ±270 º | |||
| Pumping Systerm | Outrigger spread L-R---front | mm | 11420 | |
| Specification | Outrigger spread L-R---rear | mm | 13880 | |
| Output | Low-pressure | m³/h | 180 | |
| High-pressure | m³/h | 125 | ||
| Pressure | Low-pressure | Mpa | 8.3 | |
| High-pressure | Mpa | 12 | ||
| Max. strokes per minute | Low-pressure | times/min | 29 | |
| High-pressure | times/min | 19 | ||
| Delivery cylinder diameter | mm | 260 | ||
| Stroke length | mm | 2100 | ||
| Hydraulic system | Open | |||
| Hydraulic system oil pressure | Mpa | 32 | ||
| Oil tank capacity | L | 650 | ||
| Water tank capacity | L | 700 | ||
| Pipeline size | mm | 125 | ||
| Chassis | End hose length | m | 3 | |
| Specification | End hose diameter | mm | 125 | |
| Chassis brand | Benz | |||
| Chassis model | ACTORS 5041 | |||
| Engine type | OM501LA | |||
| Engine maximum net power | kW/rpm | 300/1800 | ||
| Emission standard | Euro III | |||
| Capacity of fuel tank | L | 400 | ||
| Displacement | L | 11.946 | ||
| Max.speed | km/h | 80 | ||
| Brake distance | m | less than 10/30 | ||
