WTY5040ZXXA5
Fullwon
| Item | Main specs | ||
| Overall dimension（L×W×H） | 4600*1700*2080mm | ||
| Truck chassis model number | BJ1042V9JB5-A1(EurIV ) | ||
| Total weight | 4294 kg | ||
| Curb weight | 1920 kg | ||
| Rated weight | 2244kg | ||
| Hook center height | 1015mm | ||
| Load operation cycle time | ≤25S | ||
| Discharge operation cycle time | ≤25S | ||
| Discharge angle | ≥50° | ||
| Operation type | Automatic/Manual |

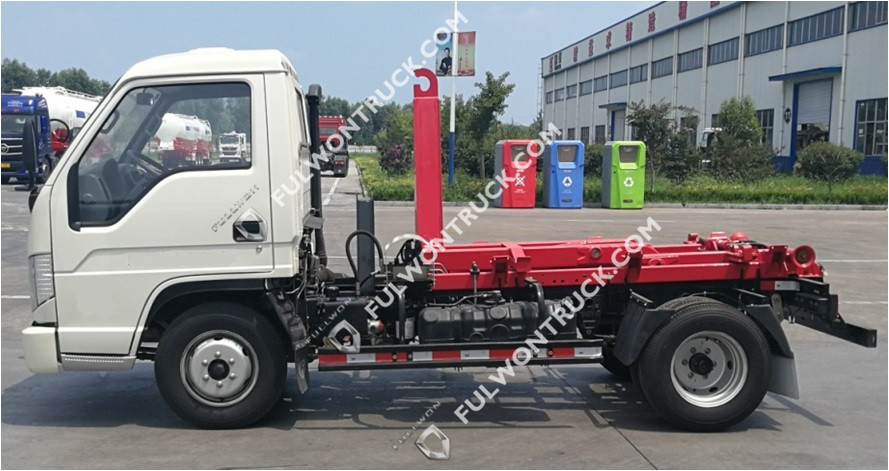

WTY5040ZXXA5 MODEL Detachable container garbage collector
Chasis Made by Foton model, assemble by Seenwon.
Its main use for urban and villege or enterprise garbage collection and transportation.
The structure is complete optimized using Finite Element Method to make it more attractive and durable. Its main use for urban and village or enterprise garbage collection and transportation.which can meet different area request by choosing dustbins with different opening way.
Main performance and characteristics:
Operation more humanity, while discharging, please Keep in the cab and operating it button, its will be working and no need get off the truck for saving more time and safety.
Lightweight Robotic Arm Design, Making it more practical and durable.
One truck multi box and automatic locking: Multi box design can greatly reduce the cost and time , Automatic locking, that can Prevent box falling during in transportation, keeping more safety.
Hydraulic Components making performance more Reliable, Mutiple valve using china famous brand, Keeping reliable. Back- Matiple Valve Mixing by Manual and electric, this design success to discharge the garbage no need get off the truck. There has balance valve and Throttle valve in the pipeline keeping more stable when Robotic Arm working.
Strong and durable sub frame, Its make by high strong steel and structure design like box skeleton，lightweight and more strong.
user-friendly interface
Lightweight Robotic Arm
Reliable cartridge valve
Locking structure
Durable sub- Frame
Eye-catching operation mark
