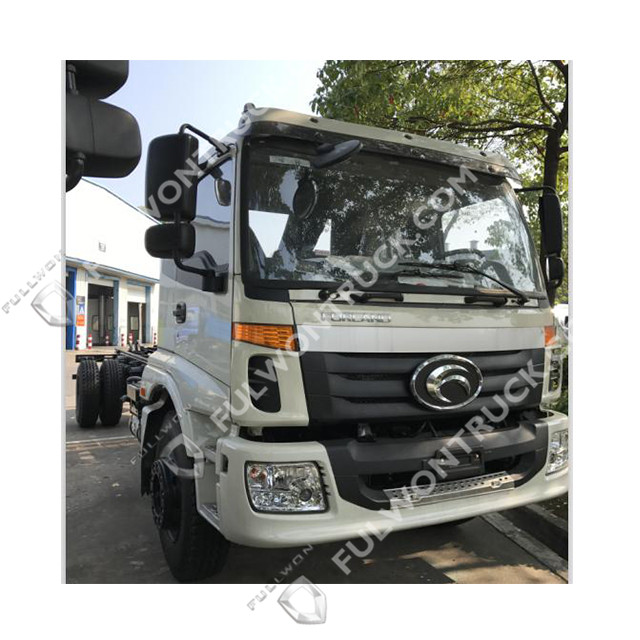

Fullwon Forland 10 Tons Medium Truck Chassis with ETX Cabin

Wheel base (mm): 5700
Curb weight (kg): 4250
Rated payload (kg): 10000
Availability:
Quantity:
  • Forland 10 Tons Medium Truck

  • Fullwon

Cabin   model Left Hand   Drive/Right Hand Drivesingle   row, flat head, single row, ETX2200
Whole vehicle main dimensions

Overall   dimensions                    L×W×H)(mm 9610×2500×2800
Inner dimensions of the cargo body                               L×W×H)(mm 7200×2380×600
Driving type  4*2
Wheel base  mm 5700
Wheel track                      (front/rear)mm 1888/1851
Weight data

 Curb weightkg 4250
Rated payloadkg 10000
Seating capacity 3
Whole vehicle main performance Max.   speed                     no load)(km/h 85
Max. gradeability (°) 25%
Engine

Model YC6J210-33
Emission Standard Euro   2
Type vertical/in-line/four   stroke/six cylinder/water cooling/supercharged intercooler
DisplacementL 6.94
Rated Power(kw/rpm)  155
 Gearbox  Model DF8S1000
 Rear axle Main   reduction ratio 457C/5.286
 Steering gear power   steering
Tire type/number 10.00R20/6+1
 Brake system Service   brake air   brake
Parking brake central   drum type braking
Rate VoltageV 24
Capacity of fuel tankL 260
Standard   configurations

Spare tire,electronically controlled flameoutadjustable steering wheelauxiliary brake,MP3
