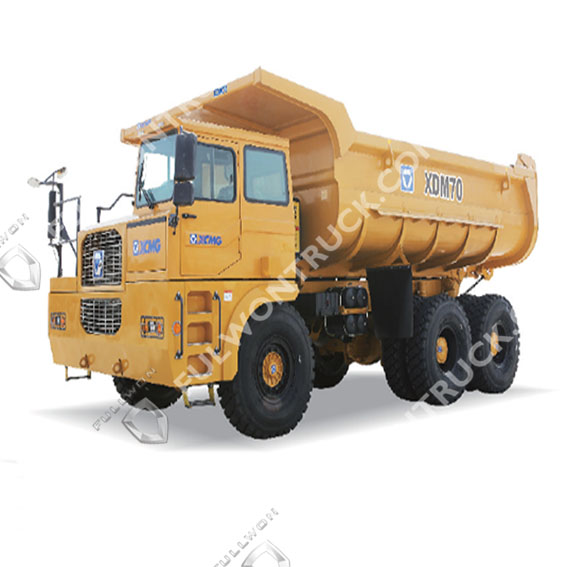

XDM70
Fullwon
Performance Parameters | |
Rated payload | 65000kg |
Empty weight | 28000kg |
Gross vehicle weight | 93000kg |
Drive style | 6x4 |
Max.Speed | 55km/h |
Max.Gradeability | 38% |
Min. Turning Diameter | 22m |
Body capacity | struck 32m3 ; heaped 2:1, 38m3 |
Overall dimension(Empty, LxWxH) | 10290x5880x5085mm |
Main parts | |
Engine model | YC6K480-GT30 |
rated power/speed | 353 KW/1900 rpm |
Max. Torque/Speed | 2200Nm/1100-1500rpm |
Drivetrain | |
Transmission | RTO-22110B |
Drive axle differential | 3.7 |
Drive axle Planetary | 3.478 |
Drive axle Total reduction | 12.87 |
Tires | |
Standard Tire | 14.00-25 36PR |
standard Rim | 11.25/2.0 |
Cab | |
Type | FOPS/ROPS cab |
Brake system | |
Driving brake | Air over hydraulic brake |
Parking brake | central disc brake |
Electrical system | 24V |
Front Suspension | McPherson, oil and gas strut |
Hydraulic system | |
Steering | Flow amplified power steering. Supplementary steering automatically supplied by accumulators |
Performance Parameters | |
Rated payload | 65000kg |
Empty weight | 28000kg |
Gross vehicle weight | 93000kg |
Drive style | 6x4 |
Max.Speed | 55km/h |
Max.Gradeability | 38% |
Min. Turning Diameter | 22m |
Body capacity | struck 32m3 ; heaped 2:1, 38m3 |
Overall dimension(Empty, LxWxH) | 10290x5880x5085mm |
Main parts | |
Engine model | YC6K480-GT30 |
rated power/speed | 353 KW/1900 rpm |
Max. Torque/Speed | 2200Nm/1100-1500rpm |
Drivetrain | |
Transmission | RTO-22110B |
Drive axle differential | 3.7 |
Drive axle Planetary | 3.478 |
Drive axle Total reduction | 12.87 |
Tires | |
Standard Tire | 14.00-25 36PR |
standard Rim | 11.25/2.0 |
Cab | |
Type | FOPS/ROPS cab |
Brake system | |
Driving brake | Air over hydraulic brake |
Parking brake | central disc brake |
Electrical system | 24V |
Front Suspension | McPherson, oil and gas strut |
Hydraulic system | |
Steering | Flow amplified power steering. Supplementary steering automatically supplied by accumulators |
