Sinotruck
Fullwon

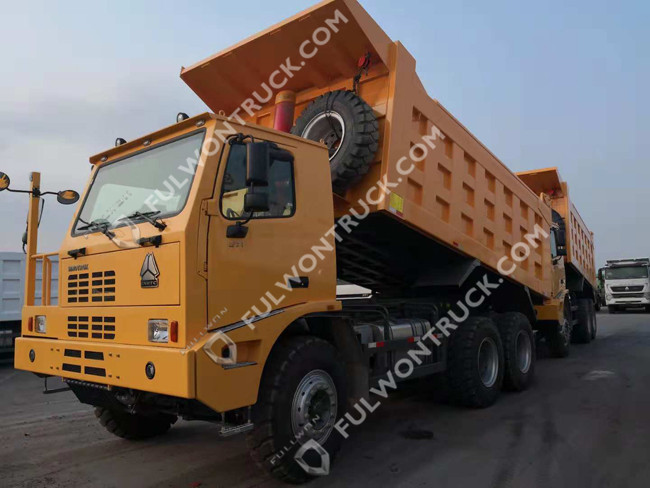

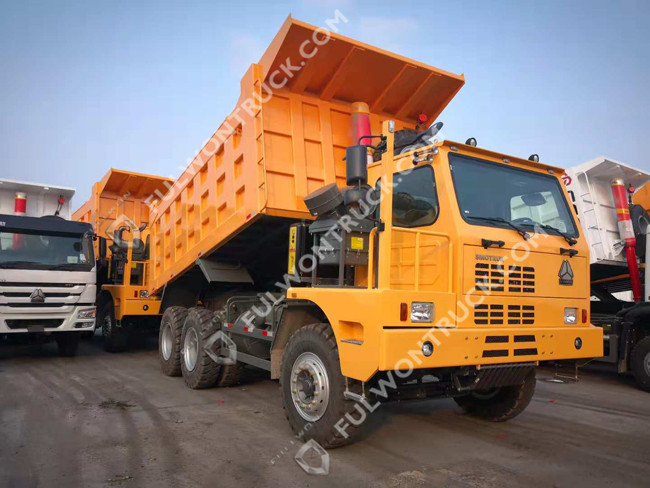

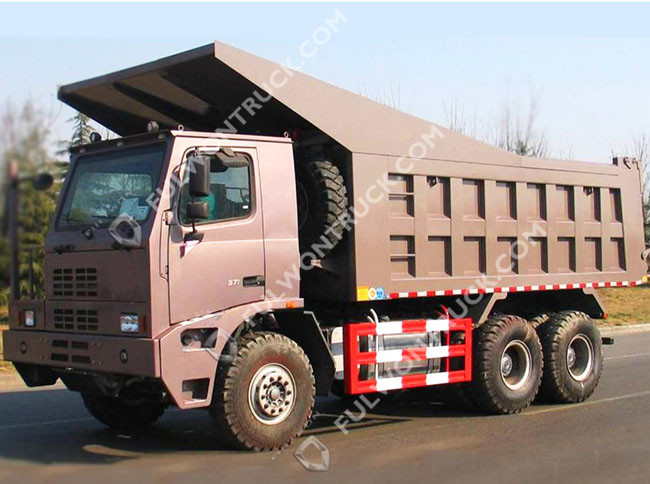

| HOVA 6x4 MINING DUMP TRUCK 336HP EUROII | |||
| Dimensions | Length (mm) | 8360 | |
| Width (mm) | 3000 | ||
| Height (mm) | 3425 | ||
| Mining Cargo body size(mm) | 5800*2800*1500 | ||
| Thickness of cargo beam(mm) | Bottom:14, Side: 8 | ||
| Wheel Base (mm) | 3800+1400 | ||
| Front/Rear Axle Tread (mm) | 1500/1660 | ||
| Approach/Departure Angle (°) | 29/34.5 | ||
| Weight | Vehicle Curb Weight (kg) | 9300 | |
| Gross Comb. Weight (kg) | 50000 | ||
| Gross Comb. Weight (design) | 50000 | ||
| Performance | Max. Speed (km/h) | 73 | |
| Max. Speed (km/h)(design) | 75 | ||
| Max. Grade Ability (%) | 32 | ||
| Min. Ground Clearance (mm) | 305 | ||
| Min. Turning Circle (m) | 20 | ||
| Fuel Consumption (L/100km) | 28 | ||
| Core Equipments Specifications | ||||||||
| Engine | Model | WD615.69, Diesel engine,Euro II emission standard,6-cylinder in line, 4-stroke, water-cooled, turbocharged, air-to-air intercooled, direct injection | ||||||
| Rated Power (HP/r/min) | 336/247kw at 2200rpm | |||||||
| Max. Torque (Nm/r/min) | 1350rpm/1100～1600 | |||||||
| Type | HOVA | |||||||
| Air Filter | 200L | |||||||
| Driving axle | Type | strengthened wide steel two-grade reducing and double tires drive axle | ||||||
| Clutch | Model | SACHS 430 | ||||||
| Type | Dry single plate, coil spring | |||||||
| Transmission | Model | ZF5S-150GP | ||||||
| Type | HW19710 | |||||||
| Speed | 10F2R | |||||||
| Frame | Type & Section | gear-shaped coupling flange | ||||||
| Section(H*W-t)(mm) | 300*90-8 | |||||||
| Front Axle | Type | SINOTRUK MADE, 25T,strengthened wide welding box stiff front shaft | ||||||
| Ratio Load(kg) | 7000 | |||||||
| FR. Suspension | Type | strenthened front parallel leaf semi-oval steel spring,column shock absorber,front stabliilzer bar,strenthened rear complete balancer suspension, 4 U-bolts obliquely equipped on single side, rear stabilizer bar. | ||||||
| Rear Axle | Type | Double reduction | ||||||
| Ratio Load(kg) | 2*16000 | |||||||
| Reduction | Center and Hub Reduction 5.73 | |||||||
| RR. Suspension | Type | 15 leaf Semi-elliptic springs with bogie spring | ||||||
| Steering | Model | ■ZF8098(Import) | ||||||
| Type | Power steering | |||||||
| Steering Wheel | hydraulic steering | |||||||
| Brake System | Service | Dual-circuit air | ||||||
| Parking | Spring | |||||||
| Auxiliary Brake | Engine Exhaust | |||||||
| Standard Equipments Specifications | ||||||||
| Driver’s Cab. | Type | HOVA Cab,dual hydraulic locks, hydraulically 52° tilting to the front | ||||||
| Equipment | standard cab,all-steel forward control | |||||||
| Driver's Seat | ■ Hydraulic shock absorbers | |||||||
| Air conditioner | □Air condition | |||||||
| Fuel Tank | Capacity (L) | □420 | ■400 | |||||
| Wheel&Tire | Type & Size | □11.00-20 | ■ 13.00-25 | □12.00R20 | ||||
| Electrical | Batteries | 2X12V/165Ah | ||||||
| Equipments | Coupler pin size (mm) | □NA | ■50# | □90# | ||||
| Coupler Height (Unload/Full) | 1306/1273 | |||||||
| Annotations | ||||||||
| 1) This vehicle specifications may differ per country and allow for production tolerance | ||||||||
| 2) Manufacture reserves the right to modify the design and equipments without prior notice | ||||||||
| 3)■means standard equipment;□means for option. | ||||||||
| 4)Product color because of color difference,take material object as standard | ||||||||
| 5) All these informations are just for reference. | ||||||||
