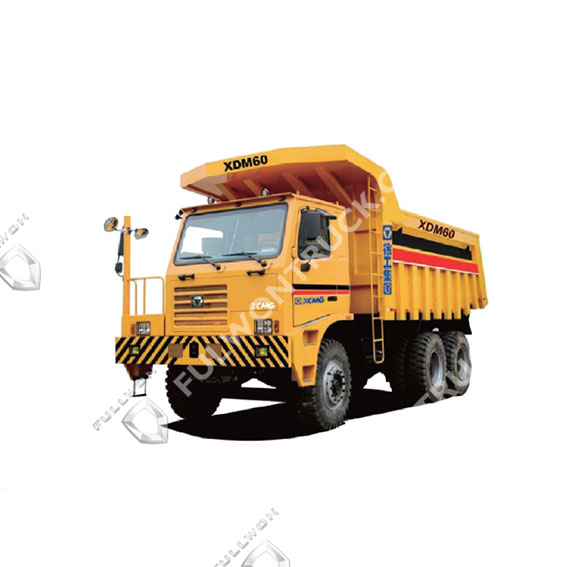

XDM60
Fullwon
Performance Parameters | |
Rated payload | 61000kg |
Empty weight | 28000kg |
Gross vehicle weight | 89000kg |
Drive style | 6x4 |
Max.Speed | 40km/h |
Max.Gradeability | 40% |
Min. Turning Diameter | 13m |
Frame | (10+8+6mm) |
Inner dimension of loading space | 5800x3200x1800mm |
Material thickness of loading | bottom 14mm, side 10mm |
Lifting mode | Multistage front lifting hydraulic system |
Main parts | |
Engine model | QSM11 |
rated power/speed | 306/1800 rpm |
Max. Torque/Speed | 1898/(1200-1400) |
Drivetrain | |
Transmission | RTO-22110B |
Wheel base | 3850mm 1560mm |
Front axle | 19T |
Rear axles | 35T x2 |
Tires | |
Standard Tire | 14.00-25 36PR |
Cab | |
Type | Offset mining cab |
Brake system | |
Driving brake | double circuit brake, JACOB brake |
Parking brake | Drum brake |
Electrical system | 24V |
