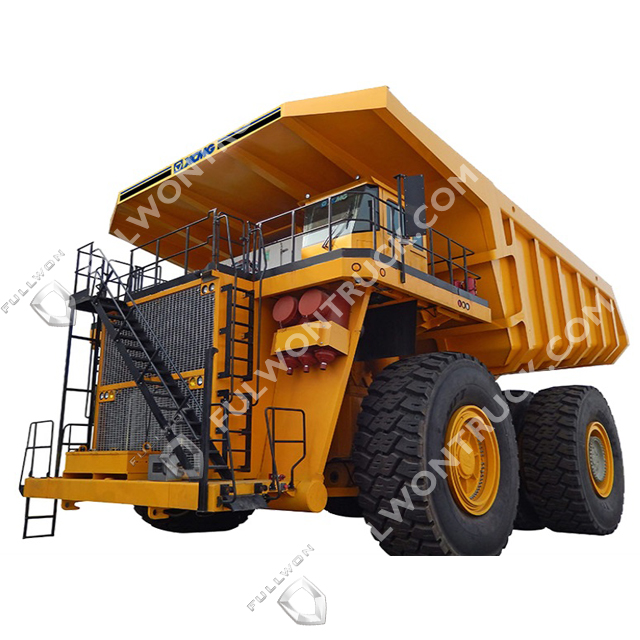

XDE200 Electric Drive Mining Dump Truck Supply by Fullwon

Rated Payload: 180000kg(200U.S.ton)
Empty Weight: 140000kg
Gross Vehicle Weight: 320000kg
Drive Style: 4x2
Max.Speed: 56km/h

Quantity:
  • XDE200
  • Fullwon
Performance   Parameters
Rated   payload  180000kg(200U.S.ton)
Empty weight 140000kg
Gross vehicle   weight  320000kg
Drive style 4x2
Max.Speed  56km/h
Max.Gradeability 18%
Min. Turning   Diameter 26m
Body capacity struck 77m3 ; heaped   2:1, 110m3
Overall   dimension(Empty, LxWxH) 13300x7460x6700mm
Weight   distribution Empty Front axle 50% ; Rear   axle 50%
Weight   distribution Loaded Front axle 33% ; Rear   axle 67%
Service Capacities Fuel 3000L ;   hydraulic system 800L
Cooling system 470L ; Crankcase 205L
Main parts
Engine model 12V4000
rated   power/speed 1510kw 2025HP   /1800rpm
Max.   Torque/Speed  8482Nm/1700rpm
Optional  QSK50
Electric   Drive
Drive system XCMG 200AC drive   system
Alternator XCMG-A1300
Traction   Motor XCMG-M590
Ratio 30.36:1
Tires and   rims
Standard Tire 37.00R57 Tubeless,   all- steel radial tires
Optional  29.00/6.0
Cab
Type FOPS/ROPS cab
Brake system
Driving   brake  All hydraulically   acuiated dry disc brakes at each wheel
Electric   dynamic retarder Max.2200kw
Electrical   system 24V
Front   Suspension Independent,   hydro-pneumatoc suspension
Hydraulic   system
Steering  Flow   amplified power steering. Supplementary steering automatically supplied by   accumulators
Hoist time   (Power- up loaded) 20s
