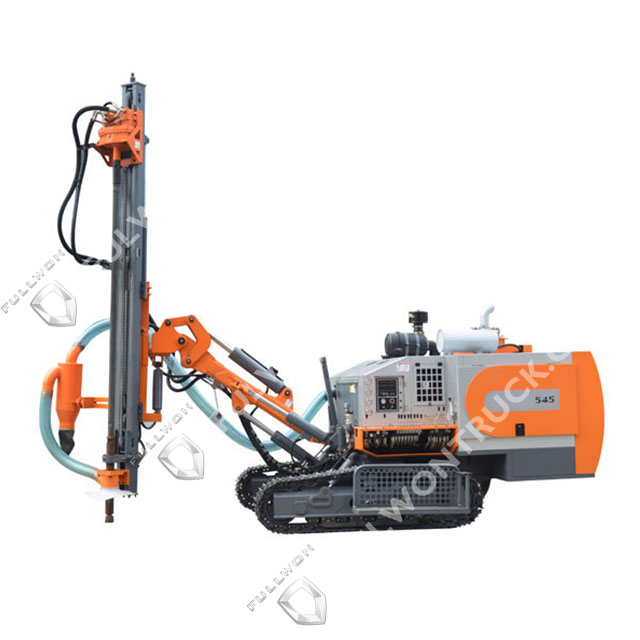

D545 Drilling Rig Supply by Fullwon

Engine Rated Power: 194 kW
Engine Emission: Euro II
F.A.D: 15 m3/min
Working Pressure: 17 Bar
Rotation Speed: 0-90 rpm

Quantity:
  • D545
  • Fullwon

SPECIFICATION OF D545
Engine   Manufacturer Cummins Engine Model 6BTA8.3-C260
Engine Rated   Power 194 kW Engine Emission Euro II
F.A.D 15 m3/min Working Pressure 17 Bar
Rotation   Speed 0-90 rpm Rotary Torque 2479 Nm
Hole Diameter   Range Ø108-127 mm DTH Hammer 4 inch
Max.Hole   Depth 20 m Number of Pipes 6+1
Drill pipe   type 76 m Pipe Length 3,000 mm(collaring   2000mm)
Feed Type Cylinder / Chain Length of Feed Beam 5,340 mm
Feed   Extension 1200 mm Feed Travel Length 3,200 mm
Feed Speed 1.1 m/s Pull Up Force(Max.) 40 kN
Max. Climbing   Ability 25° Feed Force(Max.) 21 kN
Tramming   Speed high 3 km/h,low 2   km/h Traction Force( Max.) 71 kN
Ground   Clearance 360 mm Fuel Tank Capacity 420 L
Length 7,150 mm Width 2,500 mm
Height 2,800 mm Weight(options   excluded) 10,500 kg
