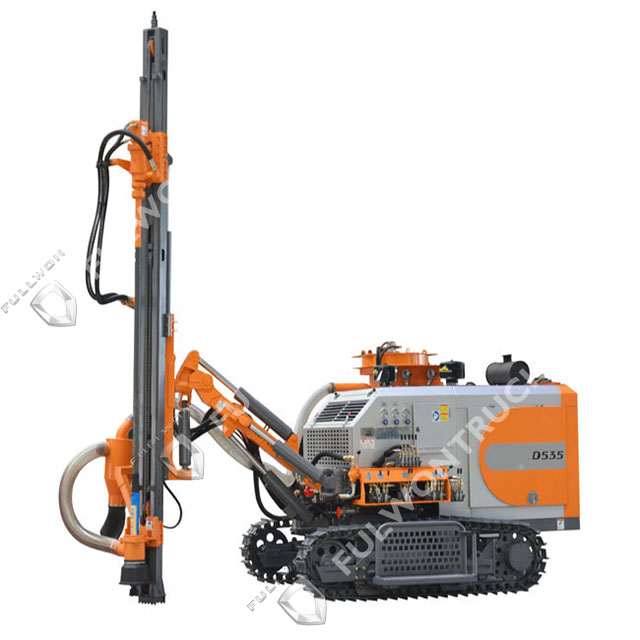

D535 Drilling Rig Supply by Fullwon

Engine Rated Power: 142 kW
Engine Emission: Euro II
F.A.D: 10 m3/min
Working Pressure: 14.5 Bar
Rotation Speed: 0-110 rpm
Availability:
Quantity:
  • D535

  • Fullwon

SPECIFICATION OF D535
ITEM DATA ITEM DATA
Engine   Manufacturer Cummins Engine Model 6BTAA5.9-C190
Engine Rated   Power 142 kW Engine Emission Euro II
F.A.D 10 m3/min Working Pressure 14.5 Bar
Rotation   Speed 0-110 rpm Rotary Torque 1450 Nm
Hole Diameter   Range Ø80-108 mm DTH Hammer 3.5 inch
Hole Depth 20 m Number of Pipes 6+1
Drill pipe   type 60 mm  Pipe Length 3,000 mm(collaring   2000 mm)
Feed Type Cylinder / Chain Length of Feed Beam 5340 mm
Feed   Extension 960 mm Feed Travel Length 3200 mm
Feed Speed 0.75 m/s Pull Up Force(Max.) 25 kN
Max. Climbing   Ability 25° Feed Force(Max.) 15 kN
Tramming   Speed high 3.2 km/h low 2 km/h Traction Force( Max.) 65 kN
Ground   Clearance 540 mm Fuel Tank Capacity 170 L
Length 6050 mm Width 2560 mm
Height 2720mm Weight(options   excluded) 6850kg

D535 drilling rig supply by Fullwon
