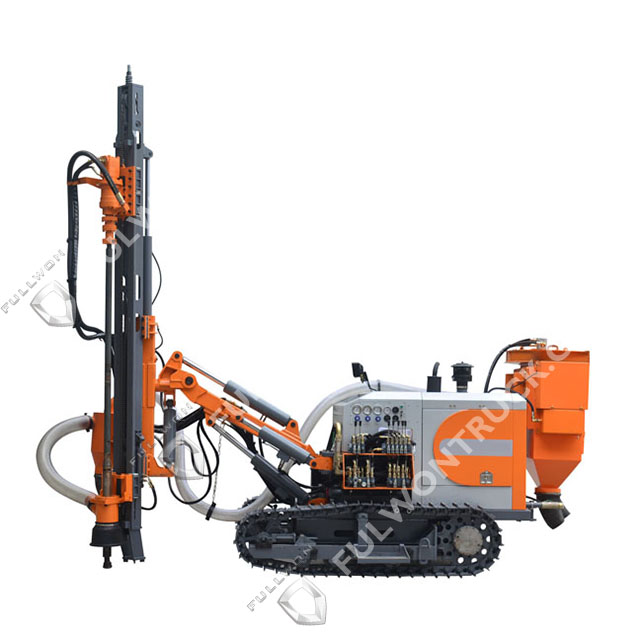

D335
Fullwon
| Engine Manufacturer | Cummins | Engine Model | 4BTAA3.9-C80 |
| Engine Rated Power | 60 kW | Engine Emission | Euro II |
| F.A.D | 8-20 m3/min | Working Pressure | 7-25 Bar |
| Rotation Speed | 0-105 rpm | Rotary Torque | 1,250 Nm |
| Hole Diameter Range | Ø90-108 mm | DTH Hammer | 3.5 inch |
| Hole Depth | 20 m | Number of Pipes | 6+1 |
| Drill pipe type | Ø 60 mm (option 76mm) | Pipe Length | 2,000 mm |
| Feed Type | Cylinder / Chain | Length of Feed Beam | 4,380 mm |
| Feed Extension | 970 mm | Feed Travel Length | 2500 mm |
| Feed Speed | 0.5 m/s | Pull Up Force(Max.) | 26 kN |
| Max. Climbing Ability | 25° | Feed Force(Max.) | 15 kN |
| Tramming Speed | high 3 km/h | Traction Force( Max.) | 35 kN |
| Ground Clearance | 450 mm | Fuel Tank Capacity | 60 L |
| Length | 5,500 mm | Width | 2,035 mm |
| Height | 2,460 mm | Weight(options excluded) | 3500 kg |
| Engine Manufacturer | Cummins | Engine Model | 4BTAA3.9-C80 |
| Engine Rated Power | 60 kW | Engine Emission | Euro II |
| F.A.D | 8-20 m3/min | Working Pressure | 7-25 Bar |
| Rotation Speed | 0-105 rpm | Rotary Torque | 1,250 Nm |
| Hole Diameter Range | Ø90-108 mm | DTH Hammer | 3.5 inch |
| Hole Depth | 20 m | Number of Pipes | 6+1 |
| Drill pipe type | Ø 60 mm (option 76mm) | Pipe Length | 2,000 mm |
| Feed Type | Cylinder / Chain | Length of Feed Beam | 4,380 mm |
| Feed Extension | 970 mm | Feed Travel Length | 2500 mm |
| Feed Speed | 0.5 m/s | Pull Up Force(Max.) | 26 kN |
| Max. Climbing Ability | 25° | Feed Force(Max.) | 15 kN |
| Tramming Speed | high 3 km/h | Traction Force( Max.) | 35 kN |
| Ground Clearance | 450 mm | Fuel Tank Capacity | 60 L |
| Length | 5,500 mm | Width | 2,035 mm |
| Height | 2,460 mm | Weight(options excluded) | 3500 kg |
