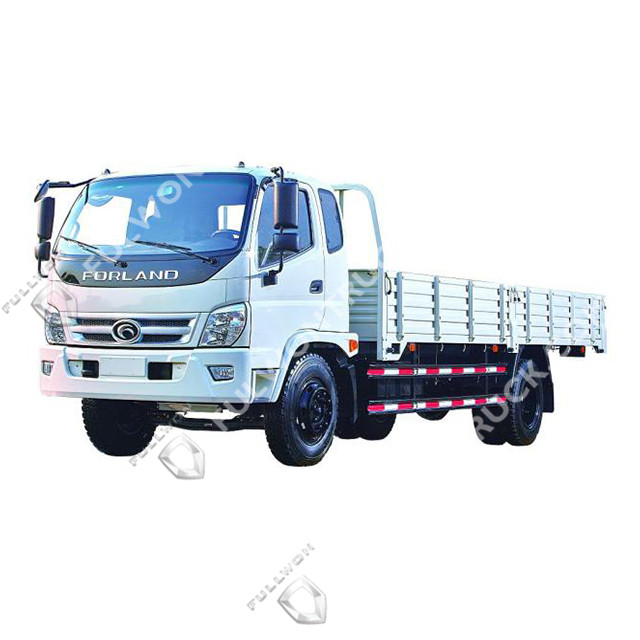

Forland 12T
Fullwon
Cabin model | Left Hand Drive/Right Hand Drive,single row, flat head | |
Whole vehicle main dimensions | Overall dimensions (L×W×H)(mm) | 8550×2370×2495 |
Inner dimensions of the cargo body (L×W×H)(mm) | 6200×2300×550 | |
Driving type | 4*2 | |
Wheel base (mm) | 4700 | |
Wheel track (front/rear)(mm) | 1825/1805 | |
Weight data | Curb weight (kg) | 4970 |
Rated Payload (kg) | 8000 | |
Max.payload (kg) | 12000 | |
Seating capacity | 3 | |
Whole vehicle main performance | Max. speed (no load)(km/h) | 90 |
Max. gradeability(°) | 25% | |
Engine | Model | YC4E160-33 |
Emission Standard | Euro 2 | |
Type | vertical/in-line/four stroke/four cylinder/water cooling/supercharged intercooler | |
Displacement(L) | 4.26 | |
Rated Power(kw/rpm) | 118/2600 | |
Gearbox | Model | 6J70T |
Rear axle | Main reduction ratio | 1108C/5.286 |
Steering gear | power steering | |
Tire type/number | 9.00R20 | |
Brake system | Service brake | Pneumatic brake |
Parking brake | central drum type braking | |
Rate Voltage(V) | 24 | |
Capacity of fuel tank(L) | 200 | |
Standard configurations | Spare tire,electronically controlled flameout,adjustable steering wheel,auxiliary brake,MP3,air conditioner(optional) |
Cabin model | Left Hand Drive/Right Hand Drive,single row, flat head | |
Whole vehicle main dimensions | Overall dimensions (L×W×H)(mm) | 8550×2370×2495 |
Inner dimensions of the cargo body (L×W×H)(mm) | 6200×2300×550 | |
Driving type | 4*2 | |
Wheel base (mm) | 4700 | |
Wheel track (front/rear)(mm) | 1825/1805 | |
Weight data | Curb weight (kg) | 4970 |
Rated Payload (kg) | 8000 | |
Max.payload (kg) | 12000 | |
Seating capacity | 3 | |
Whole vehicle main performance | Max. speed (no load)(km/h) | 90 |
Max. gradeability(°) | 25% | |
Engine | Model | YC4E160-33 |
Emission Standard | Euro 2 | |
Type | vertical/in-line/four stroke/four cylinder/water cooling/supercharged intercooler | |
Displacement(L) | 4.26 | |
Rated Power(kw/rpm) | 118/2600 | |
Gearbox | Model | 6J70T |
Rear axle | Main reduction ratio | 1108C/5.286 |
Steering gear | power steering | |
Tire type/number | 9.00R20 | |
Brake system | Service brake | Pneumatic brake |
Parking brake | central drum type braking | |
Rate Voltage(V) | 24 | |
Capacity of fuel tank(L) | 200 | |
Standard configurations | Spare tire,electronically controlled flameout,adjustable steering wheel,auxiliary brake,MP3,air conditioner(optional) |
