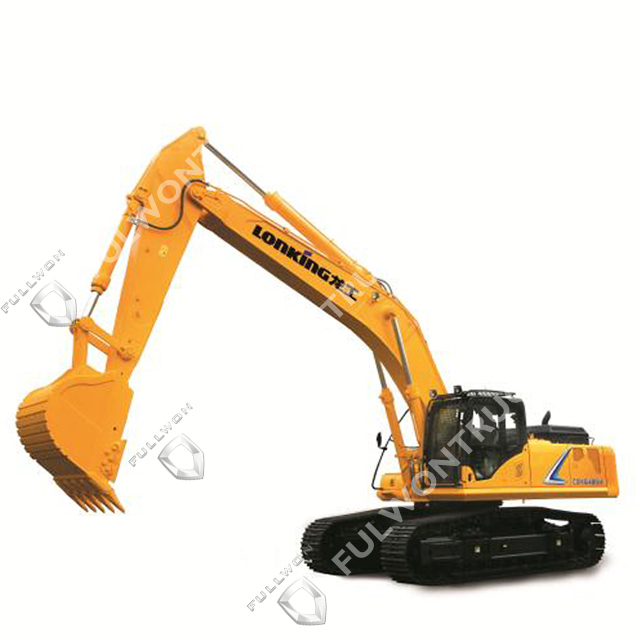

CDM6485H Excavator Supply by Fullwon

Operating weight: 48200 kg
Standard bucket: 2.2 m³
Bucket range: 2.2-2.5 m³
Ground pressure: 83 kPa
Travel speed: 3.3/5.32 km/h
Swing speed: 9.5 rpm
Quantity:
  • CDM6485H
  • Fullwon
Model
CDM6485H
General Operating weight( kg) 48200
Standard bucket(m³) 2.2
Bucket range(m³) 2.2-2.5
Ground pressure(kPa) 83
Travel speed(km/h) 3.3/5.32
Swing speed (rpm) 9.5
Gradeability 35° (70%)
Engine Model Cummins QSM11 (Euro IIIA)
Rated power(Kw(hp)/rpm) 269(360)/1850
Displacement (L) 11.04
Fuel tank(L) 655
Hydraulic System Max.pressure of Implements(MPa) 35.3
Max. flow of system( L/min) 370x2
Hydraulic oil tank(L) 480
Working Device Boom length(mm) 7060
Arm length(mm) 3380
Bucket radius(mm) 1800
Digging Force Max. arm digging force (SAE/ISO)(kN) 214/218
Max. bucket digging force (SAE/ISO)(kN) 256/282
