A30 29 Ton Articulated Dump Truck Manufacturer and Supplier

Share to:

A30 29 Ton Articulated Dump Truck Manufacturer and Supplier

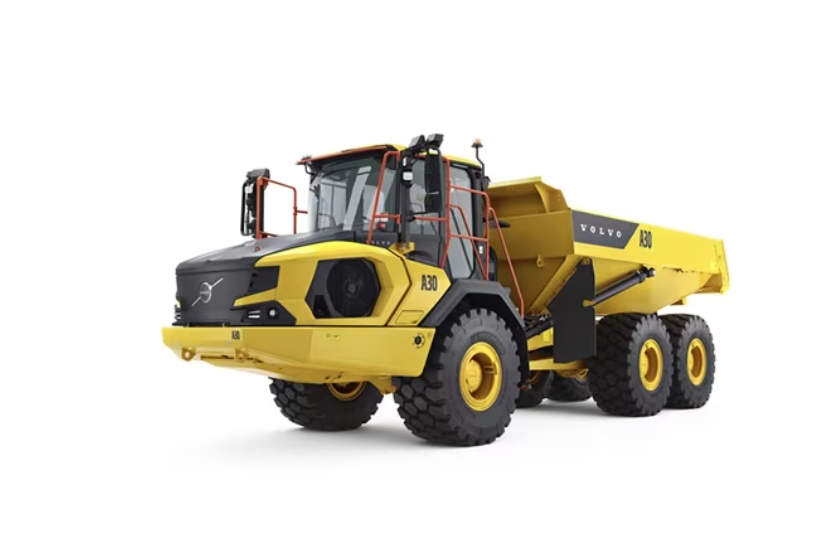

The A30 Articulated Dump Truck is a heavy-duty hauling machine designed for demanding mining, quarrying, earthmoving, and construction applications. With a 29,000 kg payload, 265 kW maximum engine gross power, and 17.8 m³ body capacity, it provides high hauling efficiency for large-scale material transportation.

Powered by a Stage V compliant engine, the A30 combines strong power output with efficient material handling performance. Its articulated design provides good maneuverability on challenging job sites, making it suitable for transporting soil, rock, aggregate, and other bulk materials across demanding terrain.

Availability:

Quantity:



Inquire

Model:
A30
Brand:
VOLVO
Emission Standard:
Stage V
Payload:
29.000 kg
Max Engine Gross Power:
265 kW
Body Capacity, SAE 2:1 Heap:
17,8 m³

Core Advantages

High 29,000 kg Payload

The A30 offers a 29-ton payload capacity, allowing large quantities of material to be transported in a single cycle and improving overall hauling productivity.

Powerful 265 kW Engine

With a maximum engine gross power of 265 kW, the truck delivers strong power for heavy-duty hauling operations and challenging working conditions.

Large 17.8 m³ Dump Body

The 17.8 m³ SAE 2:1 heap body capacity provides ample loading volume for efficient transportation of soil, rock, aggregate, and other bulk materials.

Stage V Emission Standard

The Stage V compliant power system helps meet stringent emissions requirements while supporting reliable performance in demanding construction and mining environments.

Articulated Design for Jobsite Mobility

The articulated structure provides improved maneuverability and flexibility, helping the truck operate efficiently on uneven terrain, narrow working areas, and complex job sites.

Key Attributes

Parameter	Specification
Product Model	A30
Product Type	Articulated Dump Truck
Emission Standard	Stage V
Payload	29,000 kg
Max. Engine Gross Power	265 kW
Body Capacity, SAE 2:1 Heap	17.8 m³
Application	Mining, Quarrying, Earthmoving, Construction
Material Transported	Soil, Rock, Aggregate, Bulk Materials
Truck Type	Off-Road Articulated Hauler

Packaging and Delivery

Key Differences Between Our Models

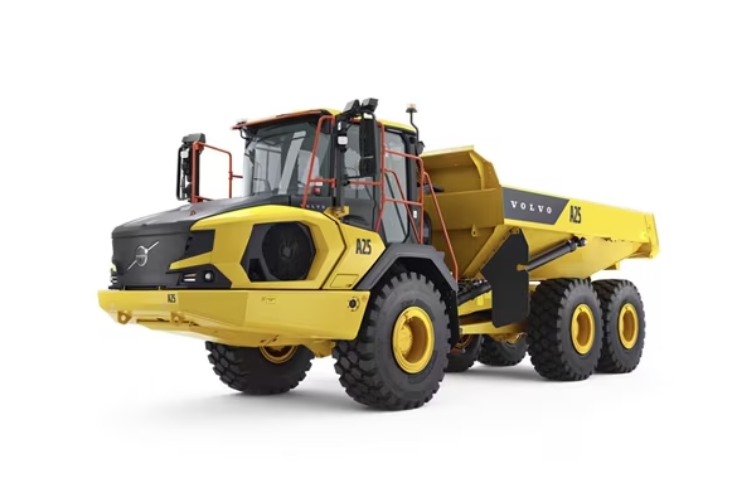

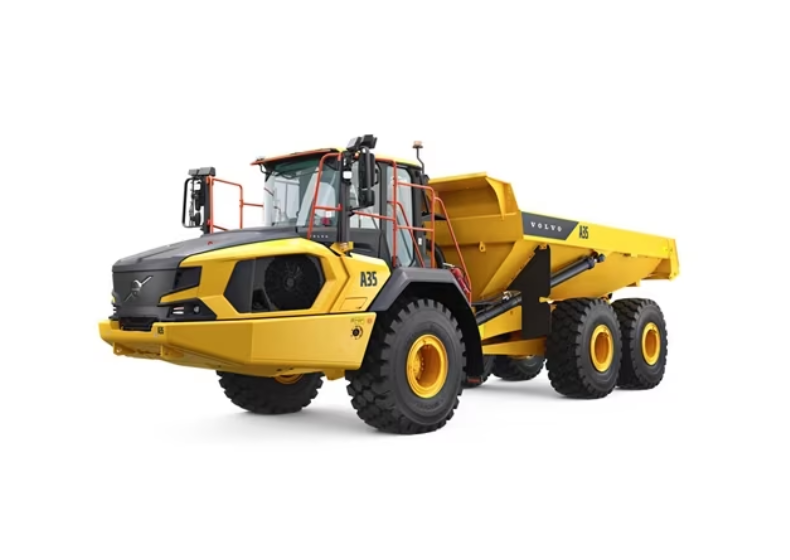

Specifications	A25	A30	A35
Emission Standard	Stage V	Stage V	Stage V
Payload	25 000 kg	29 000 kg	34 500 kg
Max Engine Gross Power	235 kW	265 kW	336 kW
Body Capacity， SAE 2:1 Heaped	15.3 m³	17.8 m³	21.3 m³
Best‑fit Application	General construction, road building, small‑mid quarry, tight‑space jobsites	General construction, heavy infrastructure, mid‑size quarry	Large quarry, mining, high‑volume bulk hauling
