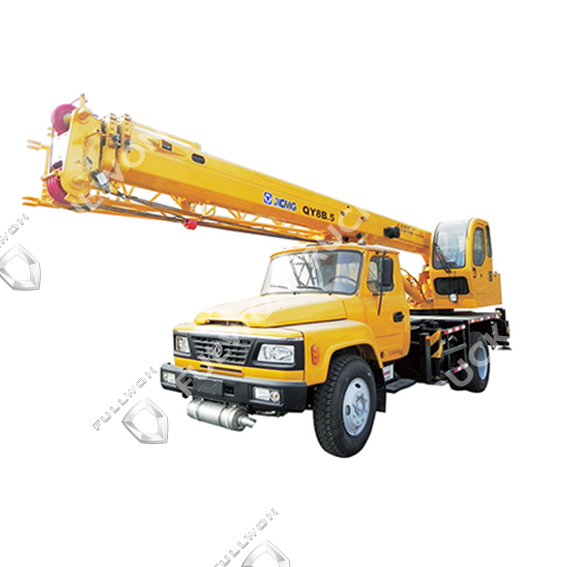

XCMG Mobile Crane QY8B.5 Supply by Fullwon

Overall length: 9450 mm
Overall width: 2400 mm
Overall height: 3180 mm
Total weight in travel: 10490 kg
Max. travel speed: 75 km/h

Quantity:
  • QY8B.5
  • Fullwon
Dimension Unit QY8B.5
Overall length mm 9450
Overall width mm 2400
Overall height mm 3180
Weight

Total weight in travel kg 10490
Front axle load kg 2800
Rear axle load kg 7690
Power

Engine model
YC4E140-30
Engine rated power kW/(r/min) 105/2500
Engine rated torque N.m/(r/min) 500/1600
Travel

Max. travel speed km/h 75
Min. turning diameter mm 16000
Min. ground clearance mm 260
Approach angle ° 29
Departure angle ° 11
Max. grade ability % 28
Fuel consumption for 100km L 25.5
Main performance

Max. rated total lifting capacity t 8
Min. rated working radius m 3
Turning radius at turntable tail m 2.254
Max. lifting torque KN.m 245
Base boom m 8.2
Fully extended boom m 19
Fully extended boom+jib m 25.3
Longitudinal outrigger span m 3.825
Lateral outrigger span m 4.18
Working speed

Boom luffing time s 28
Boom full extension time s 31
Max. swing speed r/min 2.8
Main winch single-pump/dual-pump converging (single rope) m/min 53/110
