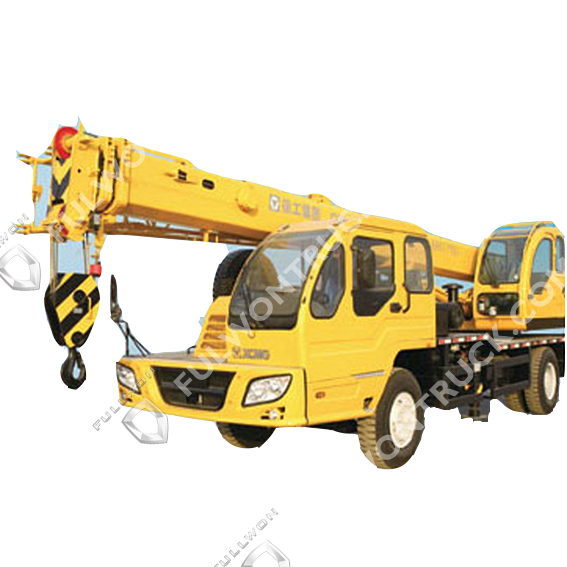

XCMG Mobile Crane QY12B.5 Supply by Fullwon

Overall length: 10200 mm
Overall width: 2500 mm
Overall height: 3200 mm
Total weight in travel: 16000 kg
Max. travel speed: 68、75 km/h
Quantity:
  • QY12B.5
  • Fullwon
Dimension Unit QY12B.5
Overall length mm 10200
Overall width mm 2500
Overall height mm 3200
Weight

Total weight in travel kg 16000
Front axle load kg 6000
Rear axle load kg 10000
Power

Engine model
6C215、WD415.21、SC8DK230Q3
Engine rated power kW/(r/min) 158/2200、155/2200、170/2200
Engine rated torque N.m/(r/min) 790/1400、820/1400、830/1400
Travel

Max. travel speed km/h 6875
Min. turning diameter mm 18000
Min. ground clearance mm 260
Approach angle ° 21
Departure angle ° 10
Max. grade ability % ≥26、≥28
Fuel consumption for 100km L 30、   40
Main performance

Max. rated total lifting capacity t 12
Min. rated working radius m 3
Turning radius at turntable tail m 2.6
Max. lifting torque kN.m 428
Base boom m 9.3
Fully extended boom m 23
Fully extended boom+jib m 29.4
Longitudinal outrigger span m 4.1
Lateral outrigger span m 4.9
Working speed

Boom luffing time s 50
Boom full extension time s 75
Max. swing speed r/min 2.6
Main winch full load/no load (single rope) m/min 110

XCMG mobile crane QY12B.5 supply by fullwon
