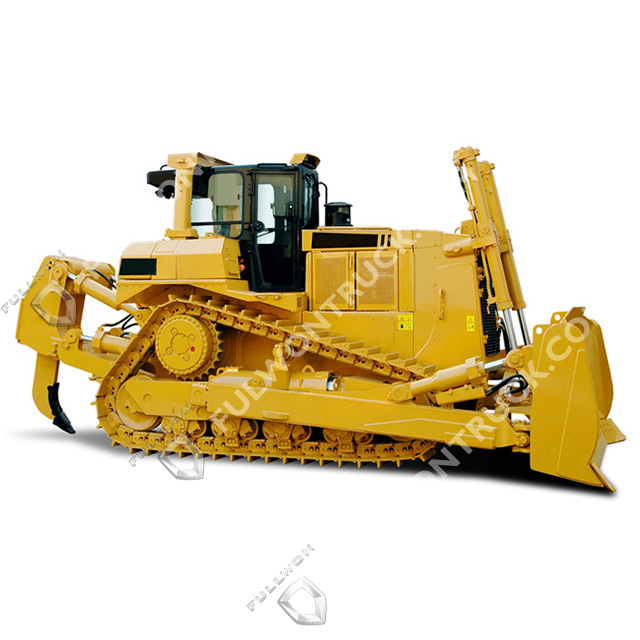

SWSD8B
Fullwon
| Specifications | |
| Overallworking weight(kg) | 36800 |
| Net power(kW/rpm) | 235/2100 |
| Bulldozing shovel capacity (M3) | 11.24 |
| Gradeability(%) | 30°/25° |
| Engine | |
| Engine model | Cummins NTA855－C360OS10 |
| Rated power(kw/rpm) | 246/1900 |
| Drive system | |
| 1 stop walking speed (km/h) | 0-3.5 |
| 2 stop walking speed (km/h) | 0-6.2 |
| 3 stop walking speed(km/h) | 0-10.8 |
| Hydraulic system | |
| hydraulic pump type | high pressure gear pump |
| Main pump working equipment maximum flow (L/min) | 220 |
| Working device set pressure relief valve (MPa) | 20 |
| Overall Dimension | |
| Overall length(mm) | 7751 |
| Overall width(mm) | 3940 |
| Overall height(mm) | 3549 |
| minimum ground clearance(mm) | 556 |
| Plow device | |
| Plow width x height width (mm) | 3940 |
| biggest drop height (mm) (below ground) | 582 |
