SWK-900-DTH
Fullwon

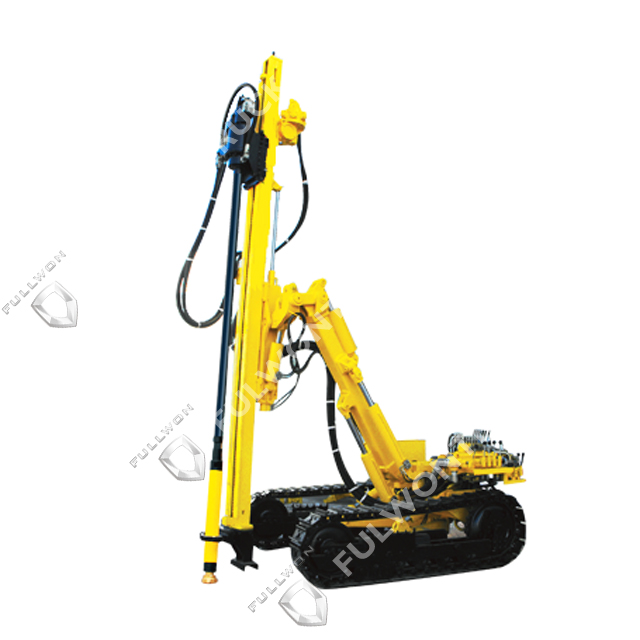

KEY | DTH Blast hole Hydraulic Crawler Rock Drilling Rig | ||
SWK-900-DTH | Technical Data | SWK-900-DTH | Technical Data |
Hydraulic Crawler Rock Drilling Rig | Hydraulic Crawler Rock Drill | ||
Air pressure (Mpa) | 1.05-2.46 | Borehole diameter | 90-140 mm |
3.5-5.5 inch | |||
Drilling height (m) | 3.5 | Grade ability (o) | 30 |
One time propulsion (m) | 3 | Rotating speed (rpm) | 72 |
Guide shell length (mm) | 1000 | Hook height (mm) | N.A |
Entire power (KW) | 56 | Boom pitching (o) | up 60 / down 20 |
Guide shell pitching (o) | 180 | Rotary torque (N.m) | 2000 |
Guide shell journey (mm) | 3306 | Lifting force (kg.f) | 2000 |
DTH Hammer (inch) | 3.5-5.5 | Dust collecting method | Dry |
Fuel capacity (L) | 115 | Shipping width (mm) | 2185 |
Guide shell swing (o) | left 46 / right 60 | Boom swing (o) | left 42 / right 50 |
Rated power (KW) | 56 | Rotating speed (rpm) | 1500 |
Overall weight (kg) | 6000 | Engine | Yuchai |
Overall dimension (mm) | 8000*2700*2900 | Compressor require | 250 / 600 |
PSI / CFM |
KEY | DTH Blast hole Hydraulic Crawler Rock Drilling Rig | ||
SWK-900-DTH | Technical Data | SWK-900-DTH | Technical Data |
Hydraulic Crawler Rock Drilling Rig | Hydraulic Crawler Rock Drill | ||
Air pressure (Mpa) | 1.05-2.46 | Borehole diameter | 90-140 mm |
3.5-5.5 inch | |||
Drilling height (m) | 3.5 | Grade ability (o) | 30 |
One time propulsion (m) | 3 | Rotating speed (rpm) | 72 |
Guide shell length (mm) | 1000 | Hook height (mm) | N.A |
Entire power (KW) | 56 | Boom pitching (o) | up 60 / down 20 |
Guide shell pitching (o) | 180 | Rotary torque (N.m) | 2000 |
Guide shell journey (mm) | 3306 | Lifting force (kg.f) | 2000 |
DTH Hammer (inch) | 3.5-5.5 | Dust collecting method | Dry |
Fuel capacity (L) | 115 | Shipping width (mm) | 2185 |
Guide shell swing (o) | left 46 / right 60 | Boom swing (o) | left 42 / right 50 |
Rated power (KW) | 56 | Rotating speed (rpm) | 1500 |
Overall weight (kg) | 6000 | Engine | Yuchai |
Overall dimension (mm) | 8000*2700*2900 | Compressor require | 250 / 600 |
PSI / CFM |
