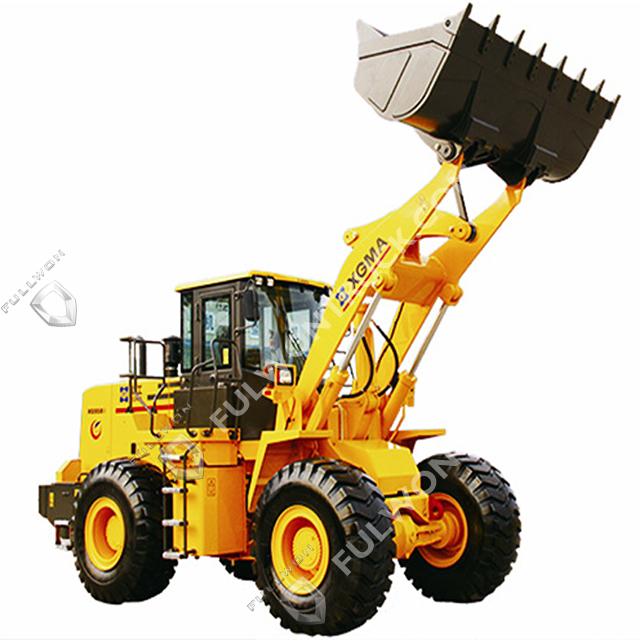

Item | Description | Unit | XG958i | |
Engine | Brand | Cummins | ||
Model | QSB6.7 | |||
Rated Power | KW | 162 | ||
Rated RPM | r/min | 2200 | ||
Dimension | Length*Width*Height | mm×mm×mm | 8131×3000×3450 | |
Max. Dumping Height | mm | 3392 | ||
Dumping Distance | mm | 1205 | ||
Min. Ground Clearance | mm | 460 | ||
Wheel Base / Tread | mm/mm | 3200/2240 | ||
Turning Angle / Dumping Angle | °/° | 35/45 | ||
General Parameters | Bucket Capacity | m3 | 3 | |
Rated Load | KG | 5000 | ||
Operating Weight | KG | 17500 | ||
Working System Pressure | Mpa | 23.5 | ||
Steering System Pressure | Mpa | 17 | ||
Max. Traction Force | KN | 155 | ||
Max. Digging Force | KN | 188 | ||
Lifting Time | s | 5.5 | ||
Cycle Time | s | 10 | ||
Gradeability | ° | 28 | ||
Rear Axle Swing Angle | ° | 11 | ||
Transmission | ZF 4WG-200 | |||
Gears | Forward I | km/h | 6.6 | |
Forward II | km/h | 12 | ||
Forward III | km/h | 24 | ||
Forward IV | km/h | 38 | ||
Reverse I | km/h | 6.6 | ||
Reverse II | km/h | 12 | ||
Reverse III | km/h | 24 | ||
Fuel Tank Capacity | L | 330 | ||
Hydraulic Oil Tank Capacity | L | 250 | ||
Tire Spec. | 23.5-25 |
