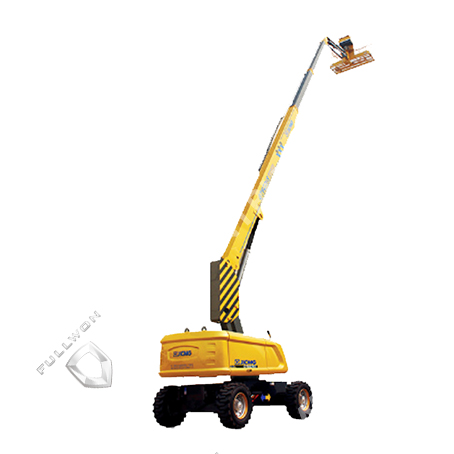

GTBZ26S
Fullwon
| Item | Unit | Parameter |
| a Overall Length | mm | 12100 |
| b Overall Width | mm | 2490 |
| c Overall Height | mm | 3050 |
| d Wheel Base | mm | 3000 |
| Maximum Working Height | m | 27.9 |
| Maximum Platform Height | m | 26.2 |
| Maximum Working Range | m | 23.2 |
| Maximum Load Capacity | kg | 340 |
| Boom Luffing Range | ° | -5～+75 |
| Crank Arm Luffing Range | ° | -65～+70 |
| Rotation Angle of Rotating Platform | ° | 360 |
| Maximum Tail Wagging | mm | 1400 |
| Platform Size | mm | 2.4×0.9/1.8×0.8 |
| Rotation Angle of Platform | ° | 180 |
| Total Weight | kg | 16600 |
| Maximum Travel Speed | km/h | 6.1 |
| Minimum Turning Radius | m | 6.7 |
| Minimum Ground Clearance | mm | 320 |
| Maximum Grade Ability | % | 45 |
| Tire Specification | - | 385/65-22.5 |
| Engine Model | - | Foton CumminsQSF2.8-71HP |
| Rated Power of Engine | kW/(r/min) | 53/(2200) |
| Item | Unit | Parameter |
| a Overall Length | mm | 12100 |
| b Overall Width | mm | 2490 |
| c Overall Height | mm | 3050 |
| d Wheel Base | mm | 3000 |
| Maximum Working Height | m | 27.9 |
| Maximum Platform Height | m | 26.2 |
| Maximum Working Range | m | 23.2 |
| Maximum Load Capacity | kg | 340 |
| Boom Luffing Range | ° | -5～+75 |
| Crank Arm Luffing Range | ° | -65～+70 |
| Rotation Angle of Rotating Platform | ° | 360 |
| Maximum Tail Wagging | mm | 1400 |
| Platform Size | mm | 2.4×0.9/1.8×0.8 |
| Rotation Angle of Platform | ° | 180 |
| Total Weight | kg | 16600 |
| Maximum Travel Speed | km/h | 6.1 |
| Minimum Turning Radius | m | 6.7 |
| Minimum Ground Clearance | mm | 320 |
| Maximum Grade Ability | % | 45 |
| Tire Specification | - | 385/65-22.5 |
| Engine Model | - | Foton CumminsQSF2.8-71HP |
| Rated Power of Engine | kW/(r/min) | 53/(2200) |
