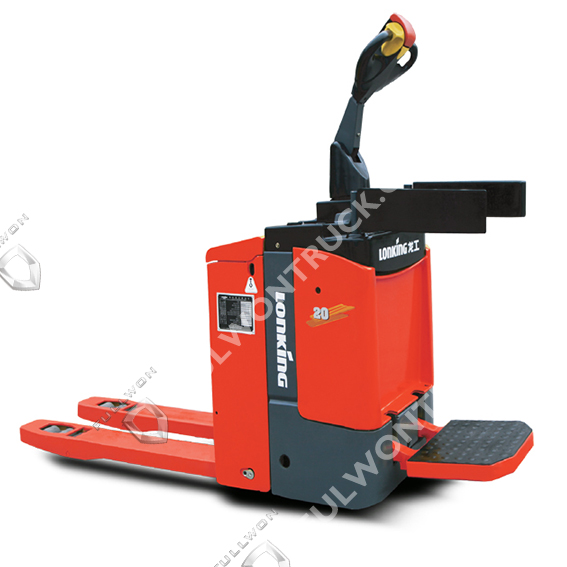

LG20ET
Fullwon
| Model | LG20ET |
| Power type | battery |
| Operation type | Standing |
| Load capacity (kg) | 2000 |
| h1STDMax.liftingheight(mm) | 205 |
| Load center distance (mm) | 600 |
| Max.travelingspeed(km/h) | 6 |
| lifting speed (m/s) (loaded/unloaded) | 42/53 |
| Max. gradient (loaded/unloaded) (%) | 8/16 |
| Fork lowered height (mm) | 85 |
| Track width, front (mm) | 520 |
| Track width, rear (mm) | 370 |
| Turning radius (mm) | 1650 |
| Lowering speed (loaded/unloaded) (m/s) | 48/42 |
| Tires size, front | Φ230×85 |
| Tires size, rear | Φ80×70 |
| Working pressure (MPa) | 10 |
| Traveling power (KW) | 1.1 |
| Lifting power (KW) | 2 |
| Battery capacity (V/Ah) | 24/240 |
| STD Dead weight(kg) | 689 |
