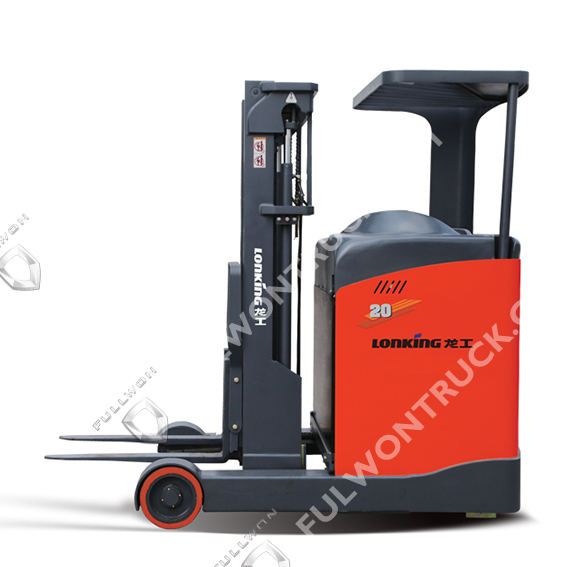

LG20DR
Fullwon
| Model | LG20DR |
| Power type | battery |
| Operation type | Seated |
| Load capacity (kg) | 2000 |
| h1STDMax.liftingheight(mm) | 3000 |
| JLoadcentre(mm) | 500 |
| Max.travelingspeed(km/h) | 10 |
| Max. lifting speed (loaded/unloaded) (mm/s) | 290/420 |
| Max. Gradient (loaded/unloaded) (%) | 10/12 |
| Mast tilt angle (front/rear)(deg) | 3/5 |
| L3Frontoverhang(mm) | 508 |
| Min. turning radius (mm) | 1810 |
| Wheelbase (mm) | 1500 |
| Front tire distance (mm) | 1156 |
| Mast Min. ground clearance (mm) | 72 |
| L5*W*TForksize(mm) | 920×120×40 |
| Traveling power (KW) | 6 |
| Lifting power (KW) | 11 |
| Battery capacity (V/Ah) | 480/560 |
| Rear wheel specifications (mm) | Φ343×130 |
| STD Dead weight(kg) | 3200 |
