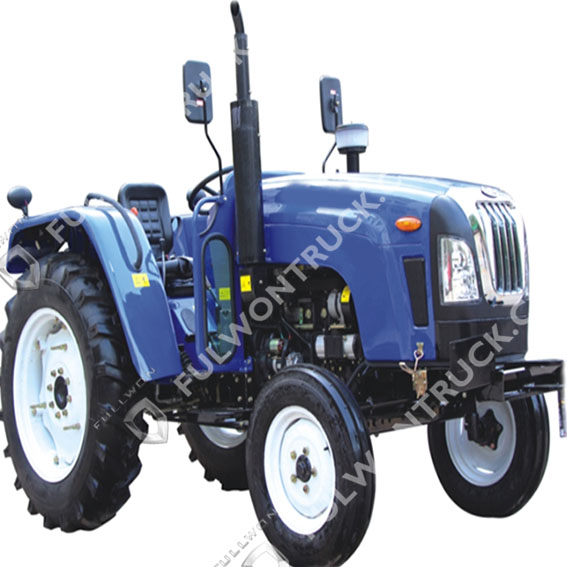

SW604
Fullwon
| MAIN TECHNICAL PARAMETERS | ||
| Tractor Model | SW604 | |
| Drive Type | 4×4 | |
| Overall Dimension L×W×H(mm) | 3925×1728×2170 | |
| Wheel base(mm) | 2010 | |
| Front wheel tread(mm) | 1265 | |
| Rear wheel tread(mm) | 1200--1500 (Common 1300) | |
| Min. ground clearance(mm) | 375 | |
| Min. steering radius | Unilateral brake(m) | 3.8 |
| Not unilateral brake(m) | 4.3 | |
| Min. operating weight (KG) | 2565 | |
| Gearbox gears number | 12F+12R | |
| Speed | Forward(Kw/h) | 2.33-31.04 |
| Reverse(Kw/h) | 2.04-27.21 | |
| Engine | Model | A4K41T60 |
| Rated power (Kw) | 44 | |
| Rated speed (r/min) | 2300 | |
| Tires spec. | Front tires | 8.3-24 |
| Rear tires | 14.9-28 | |
| Steering Type | Full hydraulic front wheels steering | |
| Max. lifting force( KN ) | 9.9 | |
| PTO | Type | Rear-mounted, Semi-independent type |
| Speed (r/min) | 540/760 or 540/1000 | |
| Power(Kw) | ≥37.4 | |
| Control type of ploughing depth | Height control & flotation control | |
| Max. traction force (KN) | 12.5 | |
| Front / rear Ballast (KG) | 104/300 | |
| Notice: As our products will be improved continuously , all above parameters are subject to modification without notice. | ||
| MAIN FEATURES | ||
| 400/450/500/550/700/404/454/504/554/604/654/704 wheeled tractors Main Features: 1. Adopt Xinchai diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency; 2. Double-function clutch,10 inches, high transmission capacity, reliable, comfortable manipulation; 3. Gearbox using 4 × 3(1 +1) engaging sleeve, shuttle-type gearshift, there are 12 forward gears, 12 reverse gears, reasonable match between the gears, and have high efficiency; 4. Independent power take off device, smooth transmission, large capacity, speed (540/760, 540/1000 r/min) for selection to meet the different operation requirements; 5. Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save energy; 6. Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good; 7. Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned; 8. Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio; 9. New streamlined appearance, generous, modern, fashion; 10. Control levers can be mounted at side as optional, more convenient and comfortable. | ||
