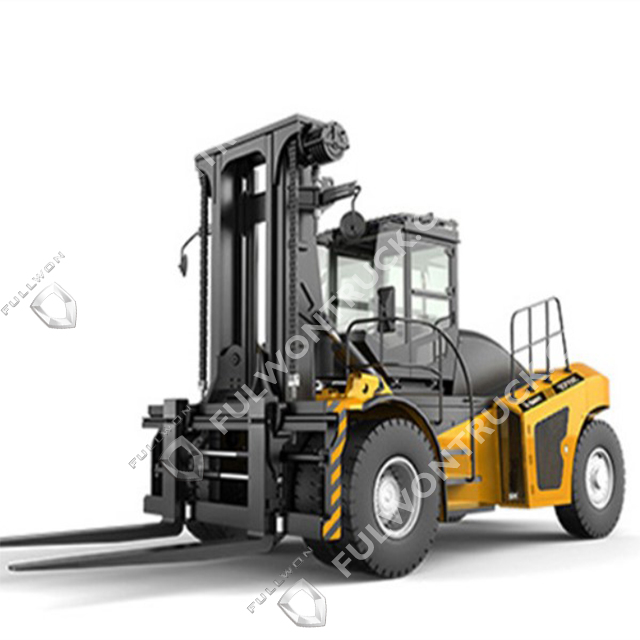

SCP460C2
SANY
| Configuration | Engine manufacturer | Cummins QSM11 |
| Rated power | 250/2100KW/rpm | |
| Max.torque | 1674/1400Nm/rpm | |
| Emission standard | EUStageIII | |
| Transmission | DANA 15.5HR36000 | |
| Drive axle | Kessler-D102PL341 | |
| Tire | 18-25 | |
| Performance | Rated capacity | 46t |
| Overall weight | 57900kg | |
| Max lifting speed(load/non-load) | 250/300mm/s | |
| Max lowering speed(load/non-load) | 400/400mm/s | |
| Max travel speed(load/non-load) | 22/25Km/h | |
| Gradeability(load/non-load) | 20% | |
| Main parameters | Overall length | 10400mm |
| Overall width | 4300mm | |
| Overall height | 4500mm | |
| Load center | 1200mm | |
| Wheel base | 5500mm | |
| Front overhang | 1396mm | |
| Rear overhang | 1100mm | |
| Min ground clearance | 485mm | |
| Truck height over seat height | 2360mm | |
| Inner turning radius | 1110mm | |
| Outer turning radius | 7600mm | |
| Front wheel width | 3033mm | |
| Rear wheel width | 2740mm | |
| Mast | Mast height(retracted/extended) | 4500/6430mm |
| Max.lifting height | 4000mm | |
| Mast tilt(backward/forward) | 5°/10° | |
| Fork | Fork dimensions | 2400*300*140mm |
| Shift distance | 1550-3150mm | |
| Application | large tonnage cargo/bulk |
