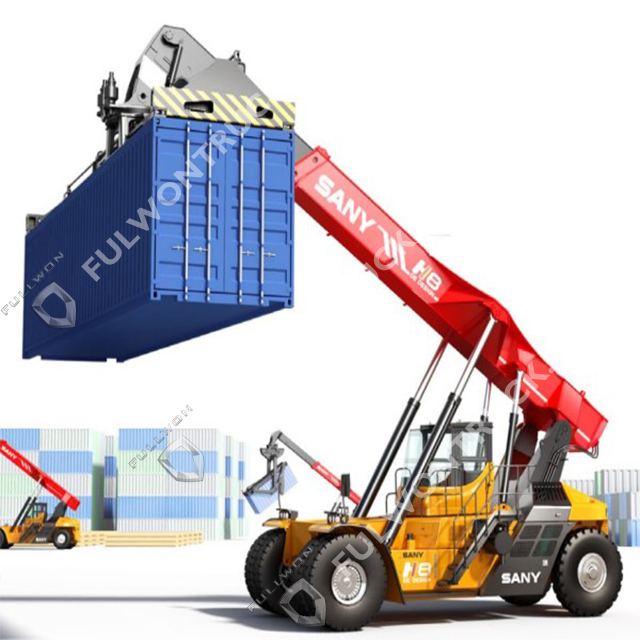

SRSC45H8A
SANY
| Configuration | Engine manufacturer | VOLVO TAD1151 |
| Rated power | 265/2100kw/rpm | |
| Emission standard | Tier III | |
| Transmission | DANA 15.5HR36000 | |
| Drive axle | Kessler D 102 PL 341 | |
| Max.torque | 1780/1260Nm/rpm | |
| Tire | 18.00-25 40PR | |
| Spreader | Self weight | 7.15t |
| Model | SDJ450H | |
| Side shift range | ±800mm | |
| Rotation angle | +105°/-195° | |
| Application | ISO20'/40'/45' | |
| Boom | Max.lifting height | 15100mm |
| Boom tilt angle | 0°-60° | |
| Performance | Max.lifting speed (non-load/load) | 420/250mm/s |
| Max.lowering speed(non-load/load) | 360/300mm/s | |
| Max.travel speed (non-load/load) | 25/21km/h | |
| Gradeability(non-load/load) | 39/32% | |
| Hydraulic system work pressure | 260bar | |
| Overall weight | 73t | |
| Max.load | 45t | |
| Stacking height | 5(9'6''/8'6'') | |
| Overall length | 11340mm | |
| Overall height | 4770mm | |
| Min.ground clearance | 350mm | |
| Overall width | 6053-12185mm | |
| Front wheel width | 3033mm | |
| Rear wheel width | 2790mm | |
| Min.turning radius | 8000mm | |
| 20''container aisle width | 11300mm | |
| 40''container aisle width | 13600mm | |
| Weight motiondistance | 500mm | |
| Wheel base | 6000mm |
